TLDR
- HCL Group and Foxconn formed India Chip Pvt. Ltd. to build an OSAT facility in Greater Noida processing 20,000 wafers monthly
- The facility will produce display driver integrated circuits for smartphones and automotive displays, with operations expected by 2027–2028
- India Chip Pvt. Ltd. is the sixth facility approved under India's ₹76,000 crore Semiconductor Mission, aiming to reduce import dependence
- Semiconductor manufacturing demands ultra-high purity specialty gases and NIST-traceable calibration standards — both critical to equipment accuracy and chip yield
HCL Group's Move into Semiconductor Manufacturing
HCL Group—historically focused on technology services and hardware—has taken a strategic leap into chip assembly and testing through its partnership with Taiwan's Hon Hai Technology Group (Foxconn). Roshni Nadar Malhotra, Chairperson of HCL Group, articulated the rationale: tapping into India's "huge domestic market demand" and capturing up to 25% of the country's display chip requirements, with 60-70% of production dedicated to domestic markets.
The Joint Venture Structure
India Chip Pvt. Ltd. operates as a 60:40 joint venture, with HCL Group holding the majority 60% stake and Foxconn contributing the remaining 40%. The total investment stands at approximately $403 million (roughly ₹3,706 crore). HCL brings established local market presence and on-the-ground operations; Foxconn contributes four decades of electronics manufacturing scale and a proven global supply chain.
Strategic Location Choice
The facility sits in Greater Noida, Uttar Pradesh, within the Yamuna Expressway Industrial Development Authority (YEIDA) zone, strategically positioned near the upcoming Jewar airport. HCL Group already employs approximately 55,000 people across Uttar Pradesh, providing an established talent base and operational infrastructure. Prime Minister Narendra Modi virtually inaugurated the groundbreaking ceremony on February 21, 2026, underscoring strong policy alignment and government commitment.
Building on Semiconductor Heritage
The manufacturing JV marks HCL Group's first venture into physical chip production, but the semiconductor groundwork was laid years earlier. HCLTech, the IT services flagship, acquired Concept to Silicon Systems in 2015 for under $10 million to build System-on-Chip design capabilities. It then acquired Sankalp Semiconductor in 2019 for ₹180 crore to expand into analog and mixed-signal design. Those engineering acquisitions make the manufacturing JV a natural next step rather than an abrupt pivot.
Inside the HCL-Foxconn OSAT Facility
Understanding OSAT
OSAT (Outsourced Semiconductor Assembly and Test) refers to the downstream phase of chip production—the stage where fabricated wafers are assembled, packaged, and tested before reaching end customers. This is distinct from fab (fabrication plants), which produce raw chips from silicon wafers using photolithography and other complex processes.

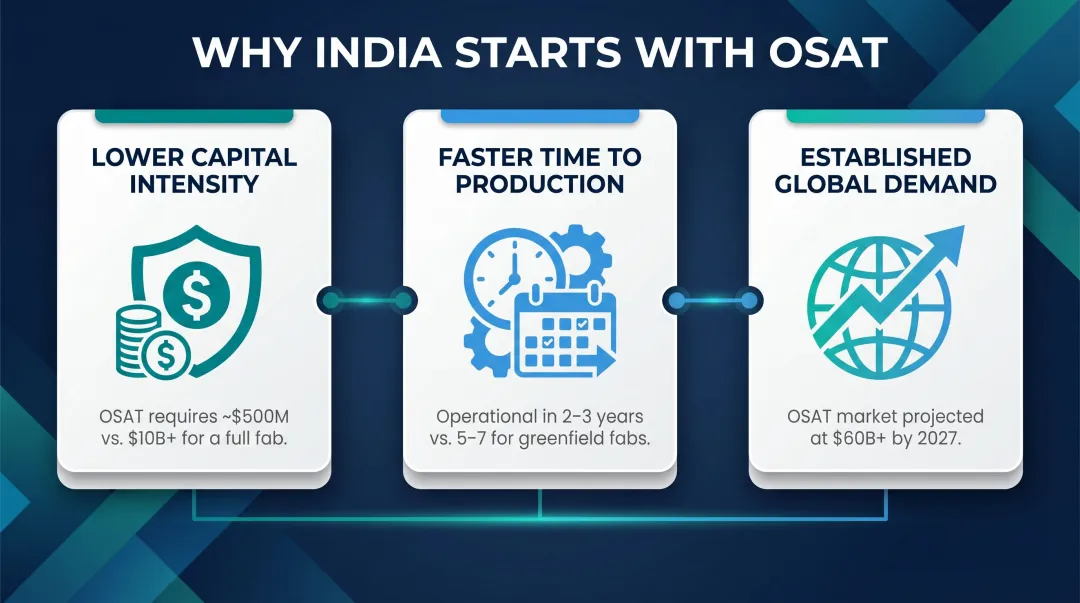

Why start with OSAT before full-scale fab capacity? Three reasons:
- Lower capital intensity: OSAT facilities require significantly less upfront investment than fabs (billions versus tens of billions)
- Faster time to production: Assembly and test operations can be operational within 2-3 years versus 4-5 years for advanced fabs
- Established global demand: Global display driver IC markets are projected to grow from $8.91 billion in 2025 to $14.72 billion by 2031, representing an 8.73% CAGR, according to industry market research
Production Capacity and Product Focus
The India Chip facility is designed to process 20,000 wafers per month, translating to approximately 36 million chip units monthly. The primary product category is Display Driver Integrated Circuits (DDICs)—the chips that control display screens in smartphones, laptops, automobiles, PCs, and consumer electronics.
Commercial production is expected to begin in 2027, with full operational capacity by 2028. Meeting these timelines depends heavily on equipment procurement, workforce readiness, and supply chain localization—all active areas of development.
Foxconn's Critical Role
Foxconn brings over 40 years of electronics contract manufacturing experience—spanning component sourcing, process engineering, and global supply chain integration—that would take HCL decades to build from scratch. Beyond manufacturing expertise, Foxconn has committed to talent training partnerships, including Mandarin-language education programs through MoUs with institutions like Shiv Nadar University to facilitate knowledge transfer with Taiwan.
Economic Impact
The facility is expected to directly employ 600–800 high-tech engineers and generate over 3,500 direct and indirect jobs through ancillary industries—logistics, components supply, R&D services, and materials provision. India's Semiconductor Mission has made job creation at this scale a core benchmark for evaluating facility incentives under its $10 billion support program.
India's Semiconductor Mission: The Bigger Picture
The India Semiconductor Mission (ISM) represents a ₹76,000 crore government initiative providing up to 50% fiscal support on a pari-passu basis (meaning government and investor share costs equally) for semiconductor manufacturing facilities. This financial backing addresses the commercial viability challenges that killed India's previous fab attempts in 2013, when consortia like Jaiprakash Associates and HSMC withdrew due to insufficient incentives and delayed approvals.
Why Now?
Two structural shifts made this the right moment to act:
Supply chain fragility exposed by COVID-19: The 2020-2023 global chip shortage cost the automotive industry an estimated $210 billion in lost revenue in 2021 alone, forcing industries to recognize concentration risk.
Geopolitical diversification pressure: Taiwan accounted for 71% of global advanced node capacity in 2021, creating severe supply chain vulnerability. India offers a democratic, stable alternative — what the industry calls a "Taiwan+1" manufacturing destination.
The Six Approved Facilities

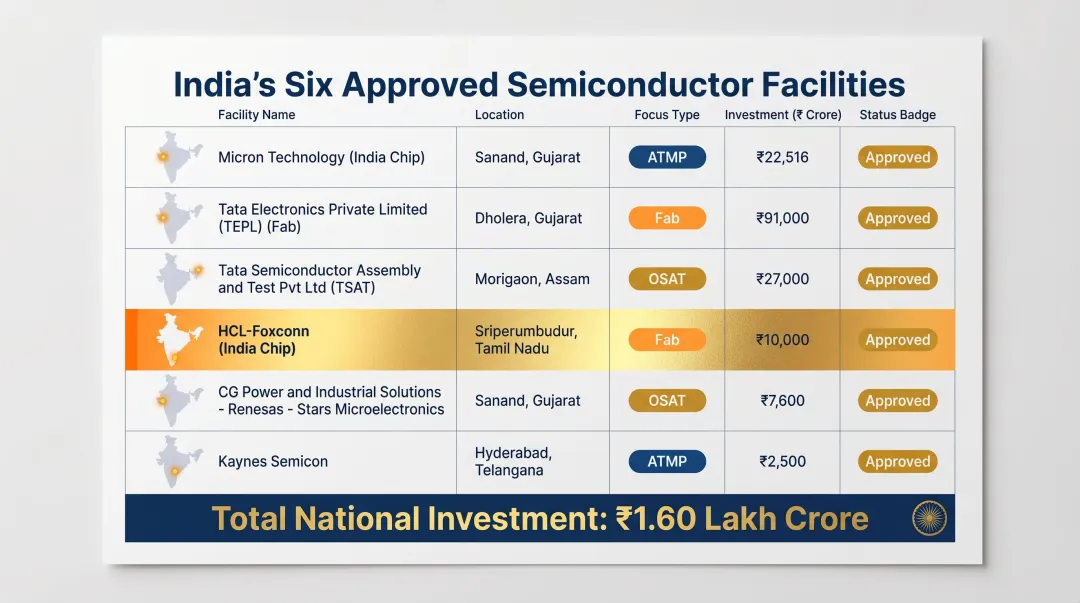

As of early 2026, India has approved six major semiconductor projects:
| Project | Location | Focus | Investment |
|---|---|---|---|
| Micron Technology | Sanand, Gujarat | Memory ATMP | ₹22,516 crore |
| Tata Electronics & PSMC | Dholera, Gujarat | 28nm Logic Fab | ₹91,526 crore |
| Tata Electronics (TSAT) | Morigaon, Assam | ATMP (Auto/Mobile) | ₹27,120 crore |
| CG Power, Renesas & STARS | Sanand, Gujarat | ATMP | ₹7,584 crore |
| Kaynes Semicon | Sanand, Gujarat | OSAT | ₹3,307 crore |
| HCL-Foxconn (India Chip) | Greater Noida, UP | OSAT (DDIC) | ₹3,706 crore |
These six facilities collectively represent approximately ₹1.60 lakh crore in committed investment — a scale that signals India is building infrastructure, not just signaling intent.
Long-Term Implications
India's goal extends beyond assembly: building an end-to-end semiconductor ecosystem spanning design, fabrication, assembly, and testing. The 2013 fab failures make that ambition meaningful in context. Direct 50% capital expenditure support removes the upfront cost barrier that derailed earlier attempts, while sustained policy backing reduces the approval uncertainty that drove investors away the first time.
The Talent and Supply Chain Challenge
Critical Workforce Gap
India will require an estimated 275,000 additional personnel in VLSI chip design, 25,000 in fabrication, and 29,000 in ATMP/OSAT facilities by 2032, according to the NCVET India Semiconductor Ecosystem Workforce Development Strategy Report. The HCL-Foxconn facility alone needs 600–800 highly specialized engineers—a steep climb given India's current semiconductor workforce base.
Planned Talent Strategy
HCL is addressing this through multiple channels:
- Partnering directly with Foxconn for hands-on upskilling and process training
- Collaborating with Shiv Nadar University to develop specialized semiconductor curricula and a localized talent pipeline
- Tapping MeitY's "Chips to Startup" (C2S) program, which targets training 85,000 specialists across the ecosystem
- Running Mandarin-language programs at partner universities to enable knowledge transfer with Taiwan
Beyond Engineering Talent
The workforce challenge doesn't stop at engineers. Semiconductor fabs depend on people who understand the handling and use of ultra-high purity process materials — specialty gases, substrates, and precision equipment — where errors can compromise entire production runs.
That expertise gap opens a real supply chain question: who supplies these materials reliably, and who provides the technical support to use them correctly? For specialty gases in particular — reactive mixtures, rare gases for photolithography, process gases for deposition and etching — sourcing from suppliers with deep formulation experience matters as much as the gas specification itself.
Specialty Inputs in Semiconductor Manufacturing
Semiconductor manufacturing is one of the most materials-intensive industrial processes in the world. Fabrication, assembly, and testing stages require ultra-high-purity specialty gases, specialty substrates, and precisely calibrated process chemicals. The global semiconductor gases market was valued at $11.64 billion in 2025 and is projected to reach $19.34 billion by 2034, growing at a 7.5% CAGR.
Key Specialty Gas Categories
Semiconductor production relies on multiple gas types across different process stages:
| Gas Category | Chemical Examples | Primary Application |
|---|---|---|
| Chamber Cleaning | Nitrogen Trifluoride (NF₃) | Cleaning CVD chambers |
| Deposition | Silane (SiH₄) | Thin-film deposition in memory/logic |
| Etching | Hexafluoroethane (C₂F₆), HCl | Plasma etching for advanced nodes |
| Doping | Ammonia (NH₃) | Precise doping for transistor channels |
| Carrier/Inert | Nitrogen, Argon, Helium | Purging, ambient control |
Purity and Calibration Requirements

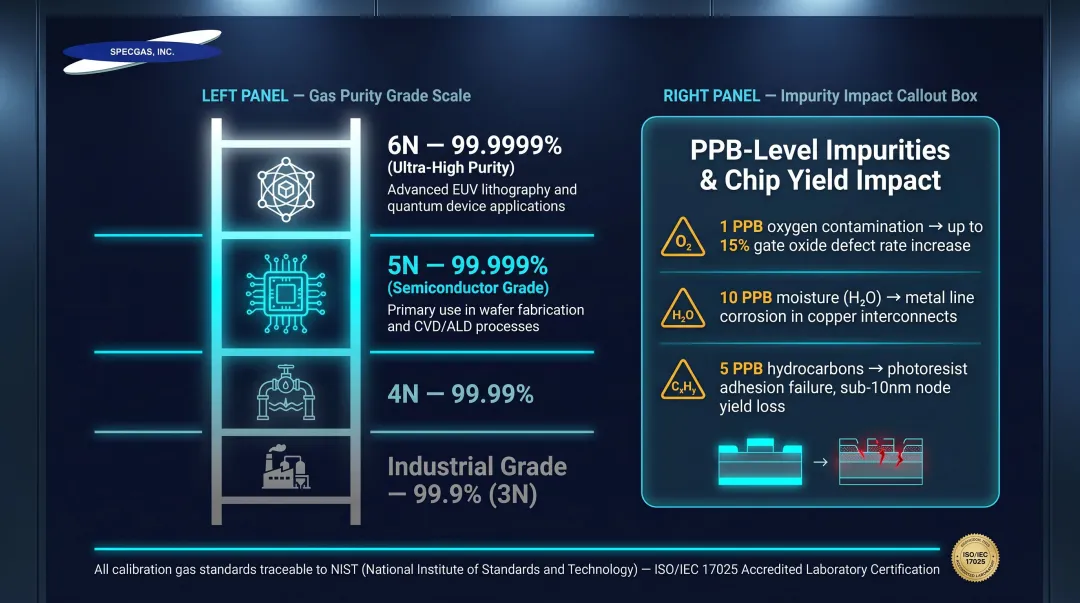

Semiconductor manufacturing demands ultra-high purity gases, typically graded at 5N (99.999%) or 6N (99.9999%). Even parts-per-billion impurities can severely compromise chip yield and performance. Equipment accuracy depends on NIST-traceable calibration gases to verify process controls—slight calibration drift can ruin entire production batches.
While front-end fabs consume massive volumes of specialty etching and deposition gases, OSAT facilities primarily require bulk carrier gases (nitrogen, compressed dry air) and **precise calibration gases** for assembly and testing environments.
Supply Chain Localization Imperative
India currently imports over 90% of critical specialty gases used in chip fabrication. As India's semiconductor ecosystem scales, local and reliable specialty gas supply becomes essential to production continuity. Suppliers who can provide NIST-traceable calibration gas standards, stable reactive gas mixtures, and rapid delivery will be essential partners.
For example, INOX Air Products is constructing a ₹500 crore (approximately $60 million) Electronic Specialty Gas Hub in Dholera, Gujarat, to supply high-purity nitrogen, argon, and hydrogen to nearby facilities. Bulk gas infrastructure addresses one layer of the supply challenge. The other — precision calibration — requires a different class of supplier entirely. OSAT facilities need partners capable of producing stable, NIST-traceable calibration mixtures at PPB-level concentrations with reliable lead times. SpecGas Inc., for instance, produces custom calibration gas blends from 300 PPB to 10% concentration levels using proprietary cylinder treatment processes that ensure reactive gas stability — exactly the consistency that semiconductor testing environments demand.
Frequently Asked Questions
Does HCL manufacture semiconductors?
HCL Group (the Indian conglomerate, distinct from HCLTech) is entering semiconductor manufacturing through its joint venture with Foxconn—India Chip Pvt. Ltd.—which will operate an OSAT facility in Greater Noida producing display driver chips, expected operational by 2027–2028.
What is an OSAT facility and how does it differ from a chip fab?
A fab (fabrication plant) manufactures chips from raw silicon wafers using photolithography, while an OSAT facility handles downstream assembly, packaging, and testing of already-fabricated chips. OSAT requires less capital and is a common entry point for countries building semiconductor capacity.
What is the India Semiconductor Mission?
The India Semiconductor Mission is a government initiative backed by ₹76,000 crore in incentives to attract investment in semiconductor manufacturing, design, and assembly. Six facilities have now been approved across Gujarat, Uttar Pradesh, and Assam, representing approximately ₹1.60 lakh crore in committed investment.
What are display driver integrated circuits used for?
Display driver ICs (DDICs) are chips that control display screens in smartphones, laptops, tablets, automobile dashboards, and PCs. Demand is driven by expanding consumer electronics adoption worldwide, with the market projected to reach $14.72 billion by 2031.
What specialty materials are required in semiconductor manufacturing?
Semiconductor manufacturing requires ultra-high-purity specialty gases (for etching, deposition, doping, and calibration), specialty substrates, and precisely controlled process chemicals. Gas purity and calibration accuracy are critical to chip yield and quality, with even PPB-level impurities potentially compromising production.
When will the HCL-Foxconn semiconductor plant be operational?
Production is expected to begin in 2027 according to Indian government sources, with the facility targeting full commercial operations by 2028. Semiconductor construction timelines can shift as equipment procurement, workforce readiness, and supply chain development progress.
