Introduction
Formaldehyde is a colorless, pungent gas classified as a human carcinogen by the International Agency for Research on Cancer (IARC Group 1). Workers in pathology labs, manufacturing facilities, and research environments face daily exposure risks that can lead to respiratory irritation, sensitization, and long-term health consequences. Accurate exposure testing matters because it directly determines whether employers must implement engineering controls, provide respiratory protection, or enroll workers in medical surveillance programs mandated by OSHA, NIOSH, and EPA regulations.
Getting that testing right requires more than pointing a monitor at the air. This article walks through the complete procedure for testing formaldehyde in workplace air. You'll learn the three primary monitoring methods, step-by-step sampling protocols, and how to interpret readings against OSHA's 0.75 ppm PEL and NIOSH's stricter 0.016 ppm REL. It also covers the most common mistakes—ozone interference, poor sampling strategy, and olfactory fatigue—that invalidate results and leave workers unprotected.
TLDR
- Three validated methods: DNPH cartridge sampling (OSHA Method 52), passive diffusive badges (OSHA Method 1007), and direct-reading instruments
- OSHA's PEL is 0.75 ppm (8-hr TWA) and 2 ppm STEL (15-min); NIOSH recommends 0.016 ppm TWA
- Sample during representative working conditions on the maximum-risk employee
- NIST-traceable calibration gas standards verify instrument accuracy before monitoring
- Avoid these pitfalls: skipping ozone denuders, trusting odor detection, or sampling on atypical workdays
What You Need to Test for Formaldehyde Exposure
Equipment requirements vary by method, but two things apply regardless of approach: the right sampling and detection tools, and proper setup conditions before any air sample is collected. Here's what each requires.

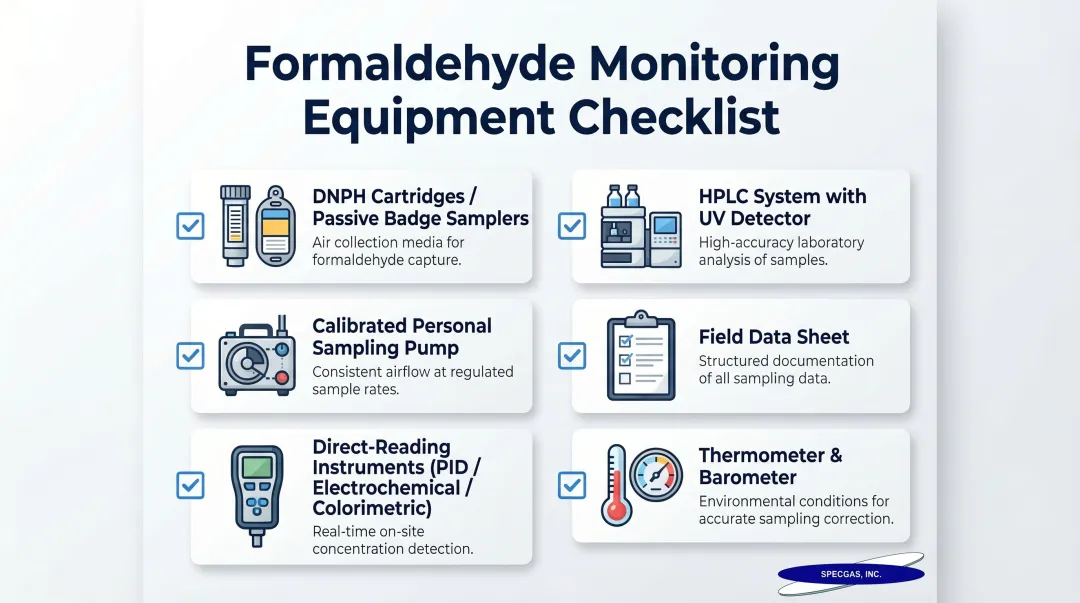

Tools and Equipment Required
Gather the following before beginning any monitoring campaign:
- DNPH-coated sorbent cartridges or passive diffusive badge samplers
- Calibrated personal sampling pump (±5% flow accuracy)
- Direct-reading instruments (photoionization detectors, electrochemical sensors, or colorimetric tubes)
- HPLC system with UV detector (laboratory-based analysis)
- Field data sheet for logging conditions
- Thermometer and barometer
Calibration Standards:
NIST-traceable formaldehyde calibration gas standards are required for verifying direct-reading instrument accuracy before and during monitoring campaigns.
Suppliers like SpecGas Inc. offer certified formaldehyde calibration blends from 1 to 100 ppm in nitrogen or air balance gases, delivered in specially treated aluminum cylinders that maintain stability of this reactive compound.
With your equipment confirmed and calibrated, the next step is ensuring conditions are right before you collect a single sample.
Preconditions and Setup
Sampling Timing:
- Conduct monitoring during normal or worst-case working conditions
- Never sample on slow or atypical days
- Identify the maximum-risk employee (worker closest to the formaldehyde source) before sampling
Environmental Documentation:
- Record ambient temperature (ideally 10–35°C)
- Log relative humidity (25–65% optimal for DNPH accuracy; below 25% causes negative bias, meaning lower-than-actual readings)
- Note ventilation state and process variables affecting airborne concentrations
- Document any changes in work practices during the sampling period
Methods to Test for Formaldehyde in Air
Three validated methods are widely used for formaldehyde monitoring. Method selection depends on whether you need TWA compliance data, STEL measurements, or real-time situational awareness—and many programs use more than one method together.
Method 1: Active Sampling with DNPH Cartridge (OSHA Method 52 / EPA TO-11A)
Draws a known volume of workplace air through a DNPH-coated sorbent cartridge at a controlled flow rate. Formaldehyde reacts with DNPH to form a stable hydrazone derivative analyzed by HPLC-UV—the most analytically rigorous method for TWA and STEL compliance measurements.
Tools/Equipment Needed:
- Calibrated personal sampling pump
- DNPH-coated silica gel or XAD-2 cartridge (certified blank < 0.15 μg formaldehyde/cartridge)
- Ozone denuder or KI scrubber (attach upstream of cartridge to prevent ozone interference)
- HPLC with UV detector set at 360 nm
- Acetonitrile (UV grade, formaldehyde-free) for extraction
- Field blanks

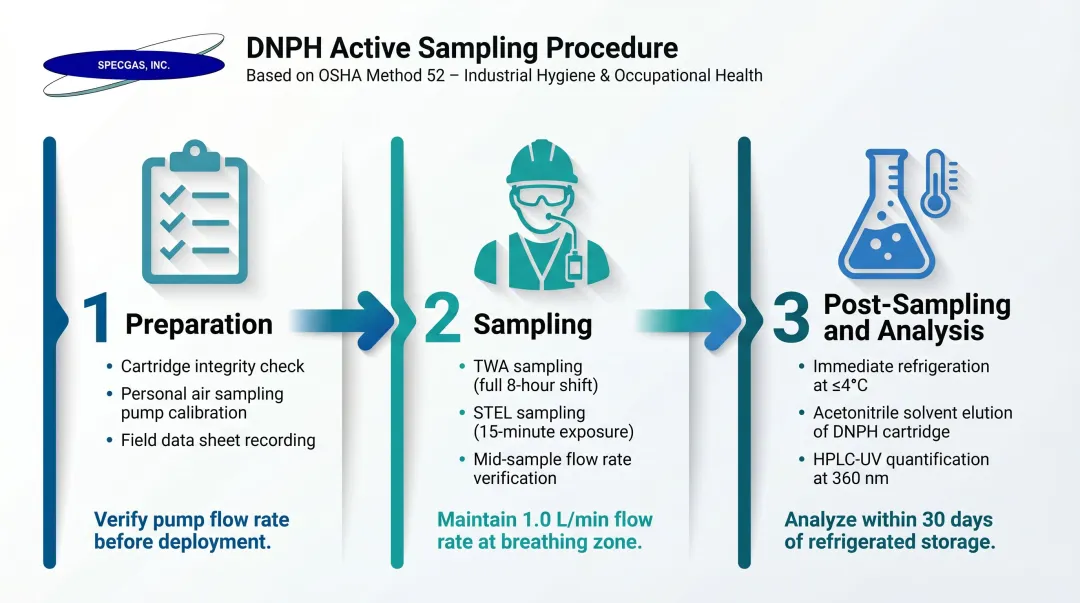

Step-by-Step:
Step 1 — Preparation:
- Check cartridge certification blank
- Assemble sampling train (ozone denuder → cartridge → pump)
- Calibrate pump to 0.1–2.0 L/min with cartridge in-line
- Record field data: time, location, employee ID, temperature, humidity, barometric pressure
Step 2 — Sampling:
- Attach sampling train to worker's breathing zone (vertical orientation)
- For TWA: sample for full work shift or known representative period
- For STEL: sample for 15 minutes during peak-exposure tasks
- Record flow rate at start and end (reject sample if flow varies >10%)
Step 3 — Post-Sampling and Analysis:
- Cap cartridge immediately after sampling
- Store at ≤4°C and ship to laboratory within 2 weeks
- Lab performs acetonitrile backflush elution (5 mL)
- HPLC quantifies against DNPH-formaldehyde derivative calibration curve
- Calculate air concentration in ppm using measured sample volume
Pros:
- Highest accuracy and sensitivity (detection limit ~16 ppb)
- Accepted for regulatory compliance by OSHA and EPA
Cons:
- Results require lab turnaround — not immediate
- Omitting the ozone denuder causes significant negative bias; even 40 ppb ozone is enough to skew results
When immediate readings aren't the priority, active sampling gives you the most defensible compliance data available. For situations where a pump isn't practical, passive sampling offers a workable alternative.
Method 2: Passive (Diffusive) Sampling
Exposes a passive badge or tube containing DNPH-coated sorbent directly to workplace air for an extended period (hours to days). Formaldehyde diffuses to the sorbent according to Fick's law—ideal for long-term TWA assessment and area mapping without a pump.
Tools/Equipment Needed:
- Certified passive diffusive sampler (badge or RING-type device with DNPH-coated silica gel)
- Manufacturer-specified uptake rate (e.g., 28.6 mL/min for SKC UMEx 100)
- Field blanks
- HPLC for laboratory analysis
Validated Uptake Rates:
| Sampler Model | Uptake Rate | Conditions |
|---|---|---|
| SKC UMEx 100 | 28.6 mL/min | Velocity 5-100 cm/sec |
| Supelco DSD-DNPH | 70.45 mL/min | OSHA Method 1007 |
| ChemDisk-AL | 13.56 mL/min | OSHA Method 1007 |
Step-by-Step:
Step 1 — Deployment:
- Open sampler from sealed container
- Clip badge to worker's lapel (breathing zone) or place in fixed location for area monitoring
- Record start time, location, temperature, and humidity
Step 2 — Exposure Period:
- Leave sampler in place for required duration (typically one full 8-hour shift for TWA)
- Avoid direct sunlight exposure or high-turbulence airflows
- Do not exceed ~65% relative humidity
Step 3 — Recovery and Calculation:
- Reseal sampler at end of exposure period
- Ship refrigerated to lab
- Analyze by HPLC
- Calculate concentration: C (μg/m³) = mass collected (μg) / [uptake rate (mL/min) × exposure time (min)] × 10⁶
Critical Environmental Constraints:
Humidity Requirements:Water is necessary for the DNPH derivatization reaction. OSHA Method 1007 explicitly states: "Do not use these diffusive samplers if the humidity is 10% or less." At 5% RH, recoveries drop to 66-77%, rendering results unreliable.
Air Velocity Requirements:The SKC UMEx 100 requires air velocity of 5-100 cm/sec to maintain its standard uptake rate. Below 5 cm/sec, the uptake rate drops from 28.6 to 20.4 mL/min, causing measurement errors if not accounted for.
Formalin Bias Warning:Passive samplers fail when monitoring atmospheres generated from formalin (methanol-stabilized formaldehyde). Formaldehyde reacts with methanol to form methoxymethanol, which diffuses at a different rate than pure formaldehyde gas, creating uncorrectable bias. OSHA Method 1007 requires active sampling (Method 52) when monitoring formalin exposures.
Pros:
- Simple to deploy with no pump maintenance
- Cost-effective for large-scale area surveys
- Well-suited for long-term average exposures
Cons:
- Lower sensitivity than active sampling
- Not appropriate for STEL measurements
- Results affected by low air movement or extreme humidity
- Cannot be used in formalin environments
Neither passive nor active sampling gives you an answer on the spot. When real-time data is what you need—for source identification or rapid hazard screening—direct-reading instruments fill that gap.
Method 3: Direct-Reading Instruments
Direct-reading instruments give you real-time formaldehyde readings using photoionization detection (PID), electrochemical sensors, or colorimetric tubes. They're the go-to for initial hazard screening, identifying peak-exposure tasks, and confirming engineering controls—but not for standalone compliance measurement.
Tools/Equipment Needed:
- Calibrated direct-reading formaldehyde monitor (PID or electrochemical type)
- Colorimetric detector tubes with manual pump (alternative)
- NIST-traceable formaldehyde calibration gas at appropriate concentration (e.g., 1 ppm in nitrogen)
Step-by-Step:
Step 1 — Instrument Verification:
- Perform zero check in clean air
- Expose sensor to a certified NIST-traceable formaldehyde calibration gas standard — specialty gas suppliers such as SpecGas Inc. produce these at concentrations from sub-ppm down to ppb levels
- Confirm reading falls within manufacturer's tolerance (typically ±10–15%)
- Document calibration check before each monitoring session
Step 2 — Real-Time Monitoring:
- Carry or position instrument in worker's breathing zone
- Observe readings continuously during tasks such as opening specimen containers, tissue fixation, or resin heating
- Note peak concentrations and associated tasks for risk assessment
- Log time-stamped readings
Step 3 — Documentation:
- Record tasks performed and ventilation conditions
- Flag readings approaching action level (0.5 ppm) or PEL (0.75 ppm)
- Trigger follow-up confirmatory sampling with Method 1 or 2 for readings above action level
Pros:
- Immediate results enable rapid decision-making and source identification
- Easy to use for walk-through surveys and task-based exposure profiling
Cons:
- Not accepted as standalone compliance measurement
- Electrochemical sensors may have cross-sensitivity to other aldehydes
- Colorimetric tubes carry wider uncertainty bands (±25–35%)

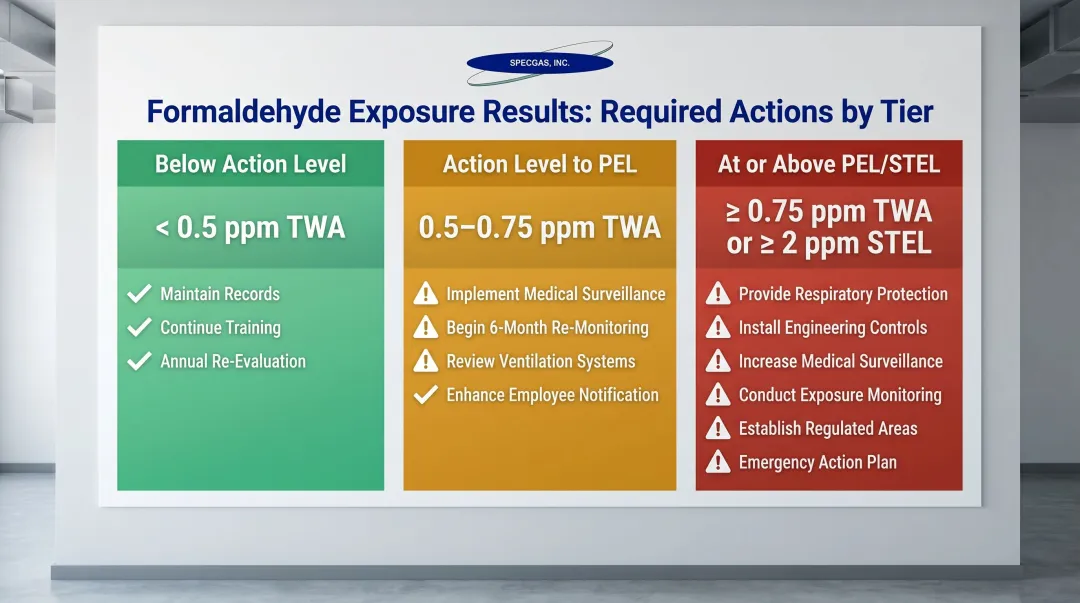

How to Interpret Formaldehyde Monitoring Results
The value of a monitoring result depends entirely on comparing it against the correct exposure limit for the correct averaging time. Misidentifying which limit applies (TWA vs. STEL vs. action level) is one of the most consequential interpretation errors in formaldehyde monitoring. The three tiers below outline what each result range requires.
Normal / Below Action Level (< 0.5 ppm TWA; < 2 ppm STEL)
Results below OSHA's action level indicate exposures are controlled. Continue periodic monitoring per the program schedule, maintain current engineering controls, and document results. No immediate corrective action is required.
At or Above Action Level but Below PEL (0.5–0.75 ppm TWA)
Triggers mandatory requirements under OSHA 29 CFR 1910.1048:
- Enroll affected workers in medical surveillance
- Repeat exposure monitoring every 6 months
- Review current ventilation and work practices for improvement opportunities
- Notify affected workers in writing within 15 days
At or Above PEL or STEL (≥ 0.75 ppm TWA or ≥ 2 ppm STEL)
Requires immediate action:
- Establish or post regulated areas
- Implement respiratory protection program
- Apply engineering controls to reduce exposure
- Increase monitoring frequency
- Consider biological monitoring (urinary formic acid) for ongoing near-limit exposures
- Involve an occupational hygienist to redesign controls
Common Errors When Testing for Formaldehyde Exposure
Even careful samplers introduce systematic error through a handful of repeatable mistakes. Watch for these five when planning or reviewing a formaldehyde monitoring event:
- Skip the ozone denuder and your results will read low. Ozone as low as 40 ppb reacts with DNPH derivatives on the cartridge. Always place a KI scrubber or copper-tube denuder upstream of the cartridge in any outdoor-influenced environment.
- Odor is not a measurement. Olfactory fatigue sets in quickly — workers often stop smelling formaldehyde at concentrations above the NIOSH action level. Never substitute smell for instrumented sampling.
- Sample the right worker on a representative day. OSHA requires monitoring the maximum-risk employee: the person closest to the source with the longest exposure duration. Sampling a peripheral worker during a low-activity shift systematically underestimates real exposure.
- Run field blanks and check batch certifications. Cartridge blanks above 0.15 μg formaldehyde/cartridge inflate apparent air concentrations. Ship a field blank with every sampling event and verify the batch certification blank before deployment.
- Don't use passive samplers in formalin environments. Formaldehyde reacts with methanol in formalin atmospheres, producing compounds with different diffusion rates that passive samplers cannot correct for. Use active sampling per OSHA Method 52 instead.
Safety and Best Practices for Formaldehyde Testing
Personal Protective Equipment
- Wear nitrile gloves, safety glasses, and a lab coat during sampling setup near formaldehyde sources
- Use a half-face respirator with organic vapor cartridges rated for formaldehyde when concentrations are unknown or potentially above the STEL
Sample Handling
- Keep sampling cartridges and collected samples refrigerated at ≤4°C during storage and transport
- Protect DNPH cartridges from direct sunlight — UV exposure degrades the derivative and introduces positive artifacts
Chain of Custody
- Label each cartridge with location, worker ID, start/stop time, and flow rate at the sampling site
- Ensure sample containers are sealed and documented before leaving the field
- Maintain clear documentation for regulatory compliance files
Conclusion
Accurate formaldehyde exposure testing comes down to three fundamentals: matching the right sampling method to the monitoring objective, deploying calibrated equipment under representative conditions, and comparing results against the correct regulatory limit—OSHA, NIOSH, or EPA, depending on context.
Acting on results is where protection actually happens. Depending on what sampling reveals, the next step may be one of the following:
- Confirming regulatory compliance and closing out the monitoring cycle
- Enrolling affected workers in medical surveillance programs
- Triggering engineering controls such as ventilation upgrades or process substitution
The procedure outlined here gives you the structure to make those decisions confidently—and to protect workers from a classified human carcinogen with the precision the risk demands.
Frequently Asked Questions
What are the monitoring requirements for formaldehyde?
Under OSHA 29 CFR 1910.1048, employers must monitor when formaldehyde use could result in airborne concentrations at or above the 0.5 ppm action level. Monitoring must be repeated every 6 months for workers at or above the action level or STEL, and whenever process changes may affect exposure.
What is the EPA rule for formaldehyde?
The EPA regulates formaldehyde as a hazardous air pollutant under the Clean Air Act, with ambient air sampling governed by EPA Method TO-11A. It is also classified as a probable human carcinogen under the Integrated Risk Information System (IRIS), which forms the basis for many state air quality standards.
What is the OSHA permissible exposure limit (PEL) for formaldehyde?
OSHA's PEL is 0.75 ppm as an 8-hour TWA and 2 ppm as a 15-minute STEL. The action level that triggers medical surveillance and periodic monitoring is 0.5 ppm TWA, while NIOSH recommends a far stricter REL of 0.016 ppm TWA.
How often should formaldehyde monitoring be conducted in the workplace?
Initial monitoring is required whenever exposures may reach or exceed the 0.5 ppm action level (see Q1 for the 6-month repeat interval). Monitoring may be discontinued once two consecutive measurements — taken at least 7 days apart — both fall below the action level and STEL.
What PPE should be worn when testing for formaldehyde exposure?
Baseline PPE includes:
- Nitrile or butyl rubber gloves, safety glasses or goggles, and a lab coat
- Half-face air-purifying respirator with a formaldehyde-rated organic vapor cartridge (required when concentrations are unknown or potentially above the STEL)
Can a home test kit accurately detect formaldehyde exposure?
Consumer-grade home formaldehyde test kits (colorimetric badges or test strips) provide a general indication of elevated levels but lack the sensitivity and accuracy required for occupational compliance monitoring. For regulatory-grade results, validated methods such as NIOSH 2016 or EPA TO-11A with HPLC analysis are required.
