Introduction
Get the installation wrong on an open path gas detector and you may not know until a detection failure puts your facility at risk. Unlike point detectors, these systems depend on precise mechanical positioning, line-of-sight (LOS) alignment between transmitter and receiver, and calibration with certified gas standards. Any gap in that process directly compromises reliability.
This work belongs in the hands of trained instrumentation technicians or safety engineers with direct experience in gas detection systems. Improper installation ranks among the most common causes of nuisance alarms, missed detections, and early system failure — each of which carries real costs in downtime and regulatory exposure.
This guide covers the complete process: site preparation, physical mounting, transmitter/receiver alignment, and calibration. Every step follows established procedures for open path IR gas detectors, so you have a clear reference from first bolt to final gas challenge.
TL;DR
- Precise mounting and line-of-sight alignment are critical — misalignment causes most commissioning failures
- Path length limits (typically 15–650 ft) and mounting surface stability must be verified before installation
- Complete coarse-then-fine two-axis alignment and confirm stability before starting calibration
- Use NIST-traceable gas at the correct concentration; detectors report in LFL-m, not %LFL
- Post-installation validation, documentation, and scheduled recalibration are required for compliance and site safety
Before You Begin: Prerequisites, Safety, and Tools
Successful installation depends on completing site readiness checks before any hardware is touched. Path obstructions, unstable mounting surfaces, and inadequate power supply are the three most common reasons installations fail or require costly rework.
Prerequisites and Safety Considerations
Site readiness requirements include:
- Path verification: Confirm the intended beam path is free of permanent obstructions (pipes, structural members, equipment)
- Temporary obstruction risks: Identify vehicles, scaffolding, or rail cars that will need to be managed during operation
- Path length validation: Verify the path length falls within the detector model's rated range—typically 15 to 650 feet depending on manufacturer
- Mounting surface stability: Ensure mounting surfaces are rigid enough to resist vibration. Angular movement as small as ±0.5° can cause alignment drift and false alarms — a rigid mount should shift only a few millimeters under body weight
- Avoid wood structures: Avoid wood supports that can warp; use heavy steel I-beams or concrete-set posts instead
Safety and compliance requirements:
- Ensure area is de-energized or follow live-work procedures per site permit system
- Confirm detector model is certified for the hazardous area classification (ATEX, IECEx, UL Class I Division 1 Groups B/C/D) of the installation zone
- Verify power supply matches detector requirements—open path IR detectors typically draw 12–22W nominal, but can draw up to 60W with optical heaters activated in cold weather
- Confirm all work is documented to support OSHA compliance (29 CFR 1910.146 confined spaces, 1910.120 HAZWOPER where applicable)
Tools and Materials Required
Essential tools and materials include:
- Mounting hardware and brackets (manufacturer-supplied or rated equivalents)
- Alignment tools: sighting scope, telescope, or laser alignment tool if supplied
- Spirit level and measuring tape
- Electrician's tools for wiring (appropriate cable type, shielding, and conduit)
- Laptop or handheld HART communicator for configuration
- Certified NIST-traceable calibration gas cylinder at the manufacturer-specified concentration (typically methane or propane in nitrogen or air)
- Compatible regulator and flow control equipment
- Detector's installation and commissioning manual
Critical: Certified calibration gas cannot be substituted with field-mixed or expired gas. The calibration gas must have a valid certificate of analysis and NIST traceability to produce legally defensible and accurate readings. SpecGas Inc. supplies NIST-traceable hydrocarbon calibration gas blends for open path detector applications, including low-ppm methane and propane mixtures with documented stability.
How to Install and Align an Open Path Gas Detector
Installation and alignment are sequential, interdependent phases. Mounting the hardware correctly is a prerequisite to achieving alignment, and alignment must be confirmed stable before calibration can begin. Skipping or rushing either phase causes cascading problems.
Physical Installation

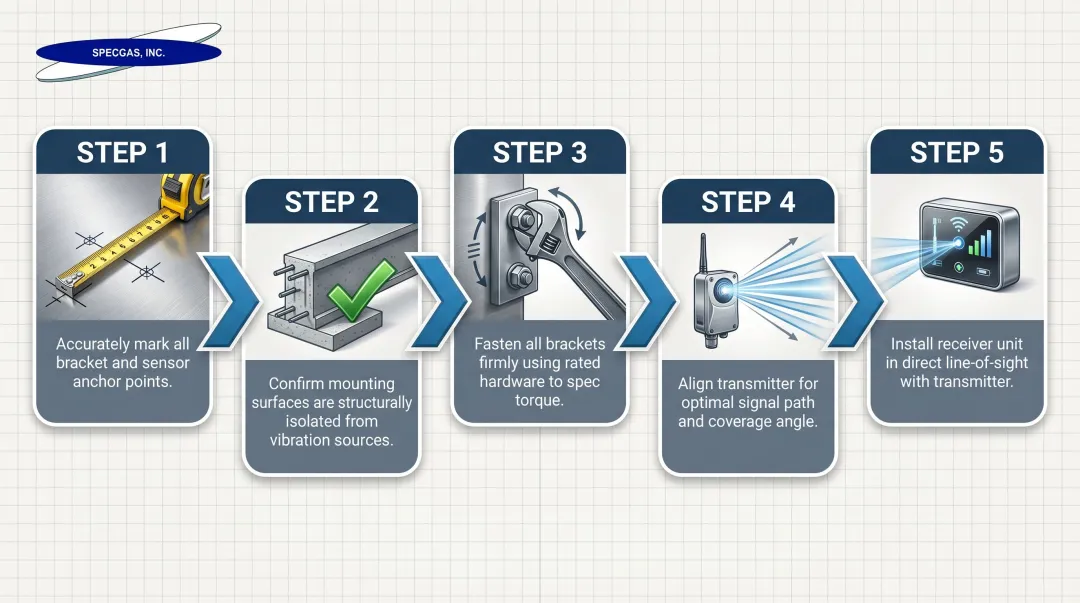

Site preparation and mounting:
- Mark positions: Use the path length and coverage plan to mark and verify transmitter and receiver mounting positions
- Verify structural independence: Ensure both mounting surfaces are on the same horizontal plane and structurally independent where possible—mounting both units to the same vibrating structure will cause alignment drift
- Secure mounting brackets: Install brackets at the specified height and orientation per manufacturer's instructions. Deviations from recommended mounting orientation can introduce measurement errors
- Orient the transmitter: Install transmitter first, oriented so the beam axis points directly toward the intended receiver location
- Mount the receiver: Position and secure the receiver at the corresponding location
Wiring and power-up:
Run power and signal cabling per manufacturer's wiring diagrams, observing correct cable type, shielding, and conduit requirements to prevent signal interference. Size 24 VDC power supplies and cable gauges based on maximum cold-start and heater loads, not just nominal power consumption—heaters can triple power draw in extreme cold.
Confirm both units are powered on and stable before beginning alignment.
Alignment Procedure
Alignment runs in two stages: coarse alignment gets the beam roughly on target, then fine alignment maximizes signal strength.
Coarse alignment:
- Use a sighting scope, laser pointer, telescope, or the unit's built-in alignment indicator to direct the transmitter beam toward the center of the receiver aperture
- Many modern open path detectors provide a signal strength indicator (numeric or LED-based) that increases as alignment improves—use this as your primary feedback tool
Fine alignment:
- Make incremental angular adjustments on both horizontal and vertical axes using the mounting bracket's adjustment screws
- Target the maximum signal strength reading indicated by the controller or detector display
- Confirm that the signal strength exceeds the manufacturer's minimum threshold—meeting this threshold puts the detector in a valid operational state
- Always peak the signal to its maximum achievable level—stopping just above the minimum threshold is poor practice and will cause installation failure
- Lock all adjustment screws securely once peak signal is achieved to prevent drift
Environmental considerations:
Conduct alignment during stable ambient conditions when you can—avoid aligning during heavy rain, fog, or temperature extremes that can temporarily reduce signal strength and give a false maximum. Some signal attenuation due to atmospheric conditions is normal in operation; the aligned signal should be strong enough to remain above the minimum threshold under expected site conditions.
How to Calibrate an Open Path Gas Detector
Open path detectors measure gas concentration across the entire beam path, reporting results in LFL-m (percent Lower Flammable Limit multiplied by path length in meters) rather than point-concentration %LFL. Calibration must account for this measurement mode.
Understanding Your Detector's Calibration Method
Some open path detectors use built-in electronic self-referencing and require zero-point verification only. Others require span gas calibration with a test cell placed in the beam path. Consult your manufacturer's manual before proceeding.
Zero Calibration
With the beam path clear of gas and the detector signal stable, perform a zero calibration to establish the baseline reference point. This is typically done in clean, uncontaminated air. If the site atmosphere contains background hydrocarbons, follow the manufacturer's procedure for zero gas or purged conditions to avoid setting an elevated baseline.
Span Calibration (Where Required)
For detector models requiring span gas calibration:
- Introduce calibration gas: Place a certified calibration gas test cell into the beam path at the position specified by the manufacturer
- Use certified gas: The calibration gas must be at the concentration and gas species recommended in the instrument manual—typically methane or propane in nitrogen or air
- Verify NIST traceability: The calibration gas must be NIST-traceable with a valid certificate of analysis. Using uncertified, expired, or incorrectly concentrated gas will produce an inaccurate span adjustment that propagates into all subsequent readings. SpecGas Inc. supplies NIST-traceable calibration gas blends — including low-ppm and hydrocarbon mixtures — with documented stability for open path detector applications
Once all span steps are complete, confirm the calibration held before returning the detector to service.
Confirm Calibration Success
After zero and span steps are complete:
- Verify the detector displays the expected LFL-m reading when the calibration test cell is in place
- Confirm the detector returns cleanly to zero when the test cell is removed
- Document everything: Record the zero reading, span reading, calibration gas lot number and certificate of analysis reference, environmental conditions at time of calibration, and the next calibration due date
OSHA and ISEA guidance recommend retaining calibration records for the life of each instrument — check your applicable regulation for specific retention requirements.

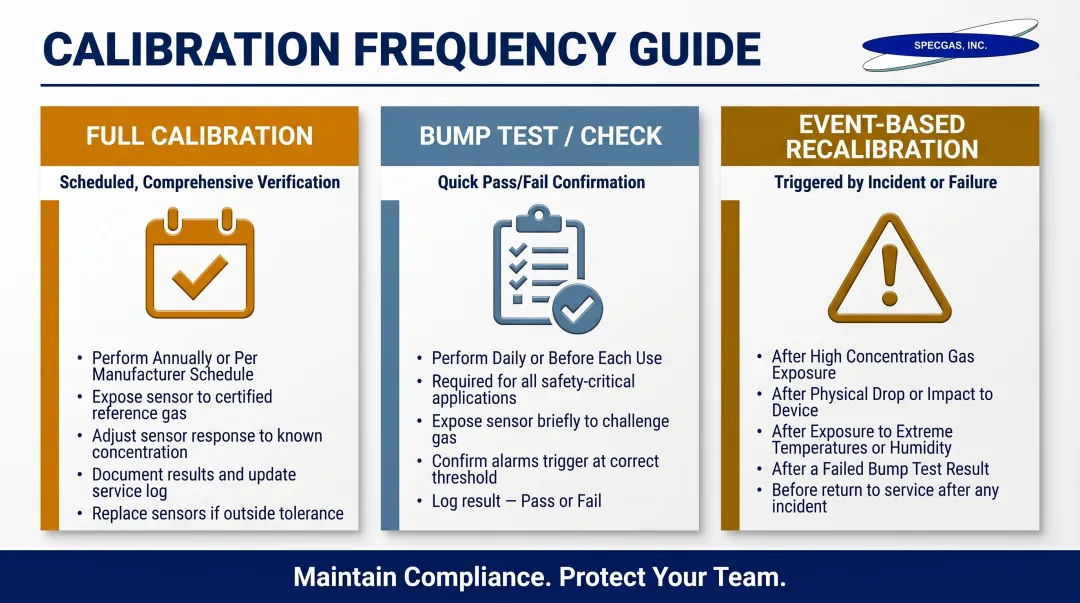

Recommended Calibration Frequency
Most manufacturers and industry guidance recommend:
- Full calibration: At least annually
- Bump testing or calibration checks: More frequently, with some applications requiring daily checks before each use
- Additional calibration: After events such as exposure to high gas concentrations, physical impact to the detector, extended operation in extreme temperature or humidity, or any failed bump test
Common Problems and How to Fix Them
These three issues come up most often after installation. Each has a clear cause and a straightforward fix.
Weak or Fluctuating Signal After Installation
Problem: Signal strength reads below the minimum operating threshold, or fluctuates during stable conditions.
Cause: Coarse alignment not completed before fine adjustment, mounting surface vibration, or optical surfaces contaminated with dust or moisture.
Fix:
- Return to coarse alignment and re-verify both units are on the same horizontal plane
- Clean optical windows using the manufacturer-specified method — typically water and mild detergent or isopropyl alcohol; avoid volatile organic compounds, which can trigger false alarms
- Inspect mounting for looseness or vibration sources and add damping if necessary
Persistent Nuisance Alarms After Commissioning
Problem: Detector triggers frequent false alarms with no gas present.
Cause: Temporary obstructions in the beam path (vehicles, scaffolding, steam, heavy rain), incorrect alarm threshold settings, or beam path chosen through a high-traffic area.
Fix:
- Review site layout and relocate beam path if obstruction risk is chronic
- Check manufacturer documentation for settings that distinguish beam obstruction from actual gas detection
- Consider higher-powered units for environments where atmospheric attenuation is common
- In extreme weather zones, activate internal optical heaters to prevent condensation and icing
Calibration Check Fails or Cannot Be Completed
Problem: Detector does not respond correctly to calibration gas or displays an error during calibration.
Cause: Expired or incorrect calibration gas, signal strength too low for a valid calibration state, or sensor/optical contamination.
Fix:
- Verify calibration gas is unexpired and matches the manufacturer-specified type and concentration
- Confirm alignment signal strength is above the minimum threshold before attempting calibration
- Clean optical surfaces and re-attempt
- If the unit continues to fail, take it out of service and contact the manufacturer

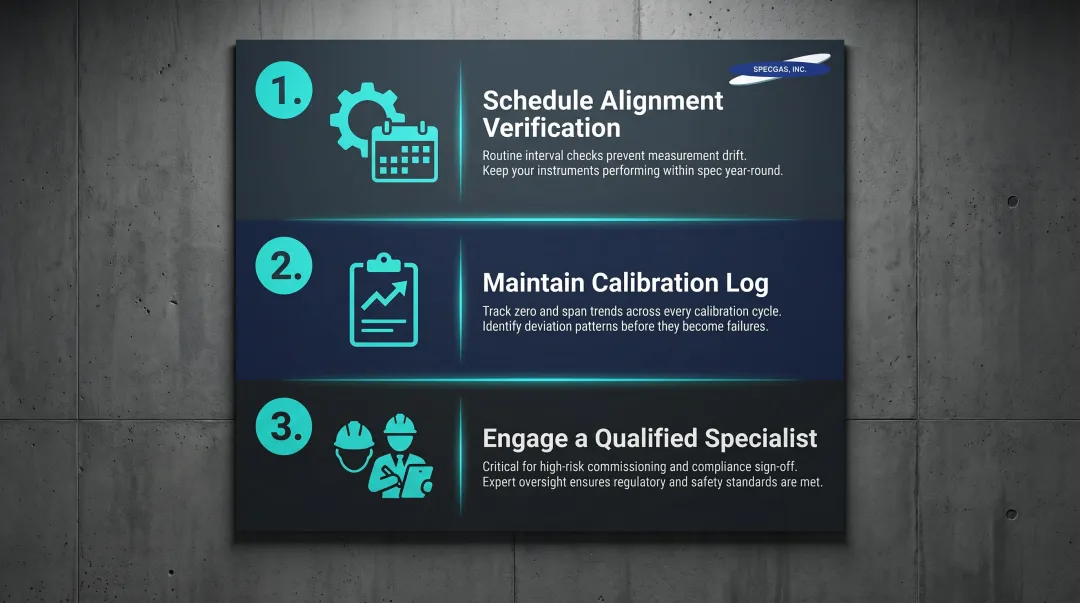

Pro Tips for Long-Term Open Path Detector Performance
Three practices separate sites that avoid costly detector failures from those that don't:
Schedule alignment verification as routine maintenance. Vibration from nearby equipment, thermal expansion, and accidental contact during maintenance work all cause gradual alignment drift. Catching it early prevents failed calibrations and missed detection events.
Maintain a detailed calibration log for each detector. Record actual signal strength at alignment checks and zero/span values at each calibration event — not just pass/fail. A pattern of drifting zero or declining signal strength is an early warning of optical fouling, sensor degradation, or mounting movement.
Engage a qualified specialist for initial commissioning in high-risk installations — offshore platforms, large onshore process facilities, and confined-space perimeter protection. Getting alignment and calibration right at commissioning typically costs less than diagnosing a miscommissioned detector once it's operational.
Frequently Asked Questions
How often does an open path gas detector need to be calibrated?
Full calibration is recommended at least once every 12 months, with bump tests or calibration checks before each use in safety-critical applications. Recalibrate any time the detector is exposed to extreme conditions, high gas concentrations, or physical impact.
What is the difference between alignment and calibration for open path gas detectors?
Alignment is a mechanical process of positioning the transmitter and receiver so the IR beam travels cleanly between them at maximum signal strength. Calibration is a measurement verification process that uses certified gas to confirm and adjust the detector's concentration readings. Alignment must be achieved and stable before calibration can be performed.
What causes an open path gas detector to lose alignment?
The most common causes are vibration from nearby equipment, thermal expansion/contraction of mounting structures, accidental physical contact during site maintenance, and settlement or movement of mounting foundations over time. Angular movement of even ±0.5° is enough to cause signal loss and commissioning failure.
What type of calibration gas is used for open path gas detectors?
Open path detectors require a NIST-traceable certified hydrocarbon gas, typically methane or propane in nitrogen or air, at the manufacturer-specified concentration. Toxic-gas variants need analyte-specific mixtures, such as H2S, chlorine, or HCN, with a valid certificate of analysis.
Can open path gas detectors operate without a clear line of sight?
No. A clear, unobstructed line of sight between transmitter and receiver is required for operation. Even partial obstruction reduces signal strength and can trigger fault states, nuisance alarms, or missed detection, which is why beam path selection during site planning matters.
What is LFL-m and how does it differ from %LFL?
%LFL measures point concentration of a flammable gas at a single location. LFL-m is the integrated measurement used by open path detectors: it multiplies average gas concentration (%LFL) by path length in meters, capturing the total gas load across the beam rather than at one spot.
