Introduction
The Honeywell SensePoint XCD is a widely deployed fixed gas detector used in hazardous industrial environments to monitor flammable, toxic, and oxygen gas levels. It's installed in oil refineries, chemical plants, utilities, and confined spaces where continuous gas monitoring is essential for worker safety. Yet its accuracy is only as reliable as its last calibration.
Calibration on the SensePoint XCD is designed to be a non-intrusive, single-operator procedure using a Magnetic Wand. In practice, errors in preparation, gas selection, or execution cause failed calibrations, false fault codes, and compromised safety data.
Skipping the 30-minute warm-up, using the wrong flow rate, or entering an incorrect span gas concentration can trigger ZERO FAIL or SPAN FAIL results — even when the detector itself is functioning correctly.
What follows walks through exact preparation requirements, the zero and span procedure, and the fixes for the failures that derail most calibrations.
TL;DR
- Required equipment: Magnetic Wand, Gassing Cap (P/N: S3KCAL), and a NIST-traceable calibration gas cylinder with a matched constant flow regulator
- Always allow 30 minutes of detector warm-up time before starting calibration—calibrating too early causes ZERO FAIL and SPAN FAIL results
- Complete both steps: zero calibration (clean air baseline) and span calibration (response to known gas concentration)
- Recalibrate every six months—and immediately after sensor replacement, a 24+ hour power-off, or above-range gas exposure
What You Need Before Calibrating the Honeywell SensePoint XCD
Calibration outcomes are directly determined by preparation quality. Using the wrong tools, incorrect gas, or incorrect flow rate will cause calibration failure even if the procedure is followed correctly.
Required Tools and Equipment
Mandatory tools include:
- Magnetic Wand (P/N: SPXCDMAG): Provides non-intrusive menu navigation through the glass window without opening the explosion-proof enclosure
- SensePoint XCD Gassing Cap (P/N: S3KCAL): Applies calibration gas during full calibration — do not use the weather protection nozzle, which is for bump tests only
- Constant flow regulator: Must be compatible with the calibration gas cylinder and capable of delivering the specified flow rate
The weather protection must be removed before fitting the Gassing Cap, and refitted after calibration is complete. Skipping this step leaves the sensor exposed.

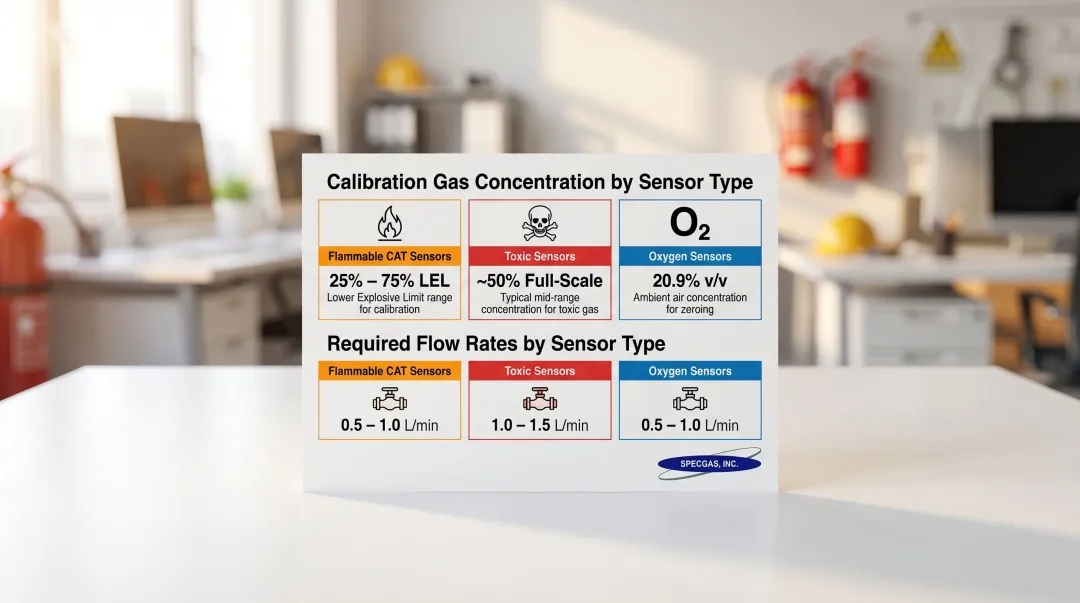

Calibration Gas Requirements
The type and concentration of span gas must match the sensor installed:
| Sensor Type | Required Concentration |
|---|---|
| Flammable (CAT) | 25% LEL to 75% LEL |
| Toxic Sensors | Approximately 50% of full-scale range |
| Oxygen Sensors | 20.9% v/v (background air or compressed air) |
Flow rates by sensor type:
| Sensor Type | Flow Rate |
|---|---|
| Zero air/N₂, O₂, H₂S, CO, H₂, NO₂ | 0.5 to 1.0 L/min |
| Flammable CAT | 1.0 to 1.5 L/min |
| Flammable IR and CO₂ IR | 0.4 to 0.6 L/min |
Deviating from these rates is a leading cause of SPAN FAIL.
Gas quality is equally critical: cylinders must be NIST-traceable and within their certified expiration date. OSHA's Safety and Health Information Bulletin states that test gas used for calibration should always be certified using a standard traceable to the National Institute of Standards and Technology (NIST).
For sensors used with the SensePoint XCD, SpecGas Inc. blends NIST-traceable calibration gas in-house, including H₂S (300 ppb to 10%), HCN (100 ppb to 10%), and chlorine (0.5 ppm to 10%). Mixtures are available balanced in nitrogen or compressed air at 20.9% v/v oxygen — the latter is mandatory for H₂S zero calibration. Reactive gas formulations use proprietary cylinder treatment for extended shelf life.
Operator and Safety Readiness
Calibration must only be performed by trained personnel. The area must either be declassified or precautions taken before accessing the detector in a potentially hazardous environment.
Connected alarm systems and control panels should be inhibited before entering calibration mode. The XCD automatically inhibits the 4–20 mA output (defaulting to 2 mA) during calibration to prevent false alarms—verify this is configured correctly before proceeding.
How to Calibrate the Honeywell SensePoint XCD: Step-by-Step
Step 1: Power On and Allow the Detector to Stabilize
Apply external power to the transmitter via the controller or PLC. The display will cycle through all icons for 3 seconds, run a startup sequence, then show a warm-up countdown (typically 60 seconds depending on gas type) before entering normal Monitoring Mode.
Critical requirement: Honeywell's manual explicitly requires 30 minutes of stabilization time after initial power-on before beginning calibration. Proceeding before stabilization is complete causes unreliable zero baseline readings.
If ambient air in the detector's location may contain residual target gas, prepare the Gassing Cap and zero gas cylinder (compressed air at 20.9% v/v oxygen) at this stage. Note that Oxygen sensors skip zero calibration entirely and use background air for span.
Step 2: Access the Calibration Menu Using the Magnetic Wand
Hold the Magnetic Wand over the ENTER switch (top center of the display, marked ✓) for at least 3 seconds, then remove. The display will show the first Configuration Mode menu: 'SEt CAL'.
If a password has been enabled (default is '0000', meaning disabled), enter it at this prompt using the up/down switches to navigate digits and the ✓ switch to confirm each one. While in Configuration Mode, the analogue output is automatically inhibited.
Activate the ✓ switch again at the 'SEt CAL' menu to enter the calibration submenu. The display will show the current gas reading with the calibration icon flashing—this confirms the unit is ready for zero gas application.
Step 3: Perform the Zero Calibration
If using zero gas or compressed air, apply it to the sensor via the Gassing Cap at the specified flow rate. If ambient air is clean and reliable (no residual target gas), zero gas is not required—the background air reading can be used directly.
Special instruction for H₂S sensors: Always use a compressed air cylinder (20.9% v/v oxygen, not nitrogen) for zeroing. Apply for three full minutes before confirming. Do not use background air for H₂S zero calibration.
When the zero gas reading is stable on the display, activate the ✓ switch to confirm. The display will show one of two results:
- ZEro PASS — zero calibration accepted; proceed to span
- ZEro FAIL — unit returns to Configuration Mode; investigate the cause before retrying
After a successful zero, the display shows 'SPAn' with 'YES' flashing. Activate ✓ to proceed to span calibration — required for Flammable IR and CO₂ IR sensors. For other sensor types, span can be skipped if only zero recalibration is needed.
Step 4: Perform the Span Calibration and Purge
The display shows the current calibration span gas concentration with a flashing icon. Use the up/down switches to set the correct span gas concentration to match what is printed on the cylinder certificate, then confirm with ✓.
Connect the regulator to the span gas cylinder, then apply span gas to the sensor through the Gassing Cap at the correct flow rate. The live gas reading displays in real time. Wait until it is fully stable, then activate ✓ to confirm span calibration.
If the sensor has been recently replaced, the display may prompt 'Replace Sensor YES/No'. Select YES for a new sensor cartridge. This updates the internal calibration reference for the replacement unit.

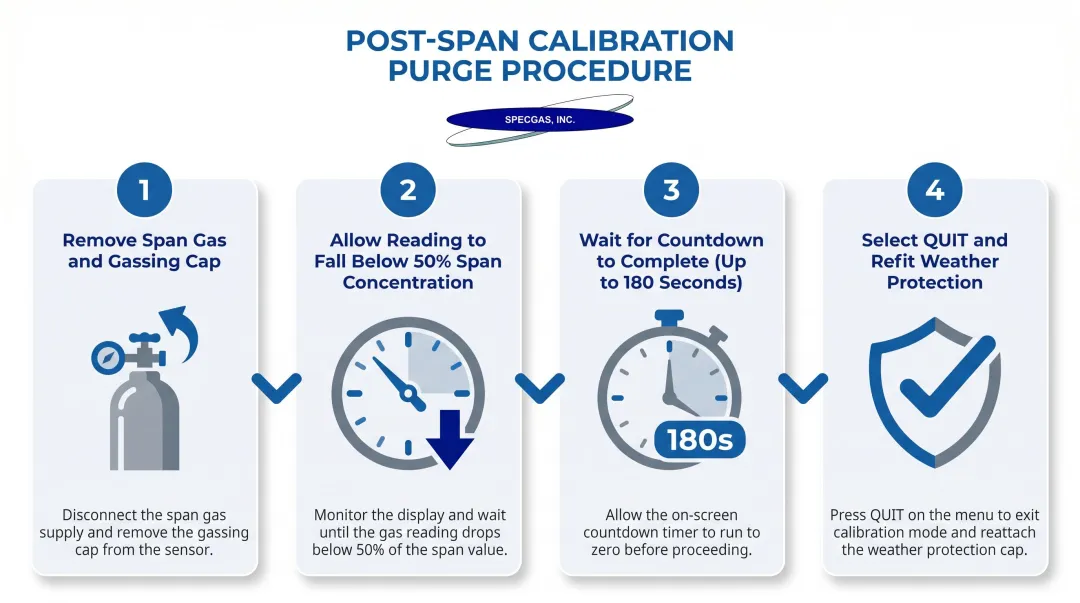

If span calibration succeeds, the display briefly shows 'SPAn PASS', then alternates between 'Purg gAS' and the current gas reading. Complete the purge sequence in order:
- Remove the span gas and Gassing Cap immediately
- Allow the reading to fall below 50% of the span concentration
- Wait for the countdown to complete (up to 180 seconds, depending on gas type)
- Once calibration is saved, select 'QuIT' to return to normal Monitoring Mode and refit the weather protection
Key Parameters That Affect Calibration Results
Four variables consistently determine whether a calibration produces reliable results — or fails. Understanding each one helps you catch problems before they show up in the field.
Calibration Gas Concentration
The XCD's internal algorithm uses the known span gas concentration to calculate a correction factor for the sensor's response curve. If the concentration entered in the menu does not match what is actually in the cylinder, the detector will read incorrectly in the field even after a 'SPAn PASS'.
For flammable sensors, Honeywell specifies a range of 25–75% LEL to ensure accuracy. Concentrations outside this range reduce the reliability of the span calibration result.
Gas Flow Rate
Flow rate affects how consistently gas reaches the sensor surface. Too low a flow rate may not displace ambient air around the sensor, while too high a flow rate can cause turbulence that prevents stable readings— either way, expect a SPAN FAIL or a skewed span value.
Environmental conditions add another layer of variability that flow rate alone cannot compensate for.
Environmental Conditions During Calibration
Temperature, pressure, and humidity conditions at the time of calibration set the sensor's operating reference point. Honeywell's manual requires ambient conditions during calibration to match normal operating conditions as closely as possible to minimize measurement errors.
H₂S sensors are highly sensitive to sudden humidity changes, which can cause short-term drift during calibration. Bump testing outdoors in windy conditions without sheltering the weather protection can introduce errors in flow rate and gas delivery.
Sensor Age and Condition
Sensor operational life limits directly affect calibration success:
| Sensor Technology | Typical Operating Life |
|---|---|
| Catalytic Bead (CAT) | 36 months (subject to poisons like silicones, sulfides, chlorine) |
| Toxic/Oxygen (ECC) | 24+ months (normal maintenance) |
| NDIR Infrared | 5 years |
A sensor nearing end of life may still technically pass calibration but produce increasing zero drift (F-03 fault) or require more frequent recalibration intervals. If recalibration frequency is increasing, schedule sensor replacement before the next inspection cycle rather than waiting for a hard failure.

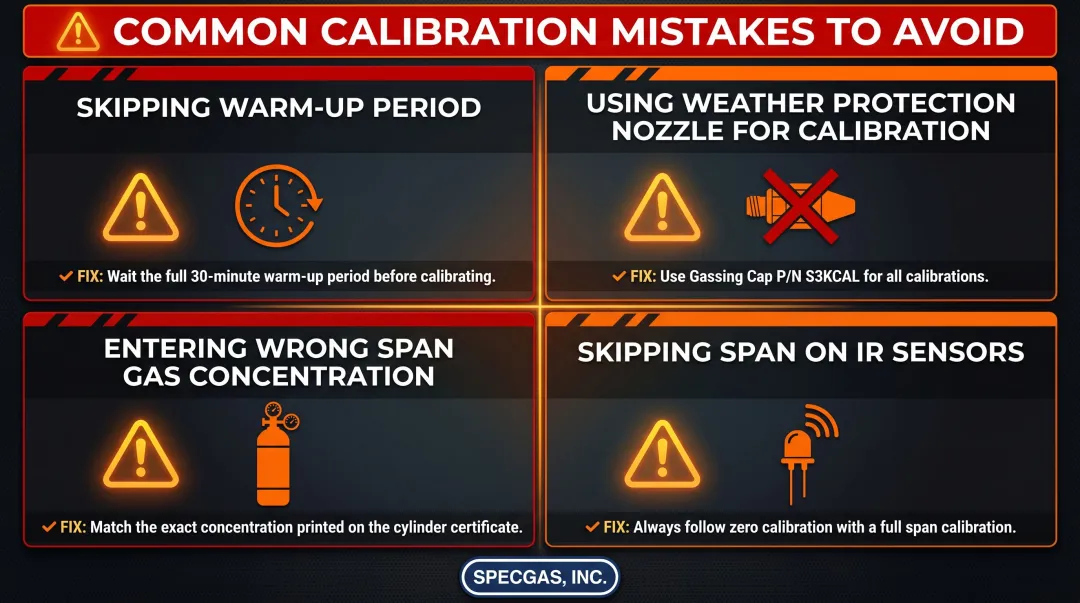

Common Mistakes When Calibrating the SensePoint XCD
Avoiding these errors before and during calibration will save you failed readings, repeated procedures, and potential safety gaps:
Skipping the warm-up period: Calibrating before the 30-minute stabilization window causes the sensor output to still be settling, producing an inaccurate zero baseline — the most common root cause of "ZERO FAIL" on initial calibrations.
Using the weather protection nozzle for full calibration: The nozzle port is designed for bump tests only and does not deliver controlled gas flow to the sensor. Full calibration requires the Gassing Cap (P/N: S3KCAL).
Entering the wrong span gas concentration: The menu value must exactly match the certified concentration printed on the cylinder certificate — not a rounded or default figure.
Zero calibration only on IR sensors: Honeywell's manual is explicit: zero calibration on Flammable IR or CO₂ IR sensors must always be immediately followed by span calibration. Skipping span leaves the detector in an unreliable measurement state.
Troubleshooting Failed Calibrations on the SensePoint XCD
'ZEro FAIL' and 'SPAN FAIL' results are common — and nearly always traceable to a correctable cause rather than a faulty detector.
'ZEro FAIL' on Display
Likely cause: Residual target gas in the ambient air around the sensor at the time of zero calibration, or significant sensor zero drift (especially in sensors nearing end of operational life).
What to check:
- Switch to a clean compressed air cylinder (20.9% v/v) and retry with the Gassing Cap if ambient air failed
- If FAIL persists, check for the F-03 fault code (significant zero drift)
- Consider sensor replacement if the fault code is present
'SPAN FAIL' on Display
Likely cause: One or more of the following:
- Flow rate set too high or too low at the regulator
- Span gas concentration on the cylinder doesn't match the value entered in the menu
- Sensor output too degraded to reach the expected response level
What to check: Verify the regulator flow rate with a flow meter and confirm the menu concentration matches the cylinder certificate exactly. Apply gas for a longer period to let the reading fully stabilize before confirming. If the sensor is past its operational life, replace it and recalibrate.
F-03 Fault Code (Significant Zero Drift)
Likely cause: The sensor's baseline has drifted beyond the acceptable threshold, often due to extended exposure to sensor-poisoning substances (silicones, sulfides, chlorine) or a sensor approaching end of life.
What to check: Perform a full zero and span recalibration. If the F-03 fault code returns shortly after successful calibration, the sensor can no longer hold its baseline and needs replacement.
Frequently Asked Questions
What is a 3-point calibration for Honeywell SensePoint XCD gas detectors?
The standard SensePoint XCD procedure is a 2-point calibration (zero point and one span point). A 3-point calibration, which adds a second span check at a different concentration, is not a built-in menu function. It can be performed manually at the site level for added verification, especially where regulations require it.
How often should the Honeywell SensePoint XCD be calibrated?
Honeywell recommends recalibration every six months under normal conditions, or more frequently if the detector is exposed to sensor-poisoning substances, concentrations significantly above the measuring range, or if the calibration interval warning (W-01) appears before the standard schedule.
What is the difference between a bump test and a full calibration on the SensePoint XCD?
A bump test (accessed via the Bump Test menu) is a quick gas response check that confirms the sensor reacts to gas but does not update calibration values. A full calibration (zero + span) adjusts the detector's measurement accuracy and requires the Gassing Cap, proper span gas, and the complete procedure.
What calibration gas concentration should I use for the SensePoint XCD?
For flammable (CAT) sensors, use between 25% and 75% LEL of the target gas. For toxic sensors, use approximately 50% of the full-scale range. For oxygen sensors, use 20.9% v/v (compressed air or background air). The span gas concentration entered in the menu must exactly match the certified value on the cylinder.
Do I need to recalibrate the SensePoint XCD after replacing the sensor?
Yes, sensor replacement always requires recalibration. The XCD will prompt the user during span calibration to indicate whether the sensor has been replaced. For Flammable CAT sensors, the baseline must also be re-initialized using the 'InIt bASE' menu option before calibration proceeds.
What does it mean when the SensePoint XCD shows 'ZEro FAIL' or 'SPAN FAIL'?
These messages indicate the calibration attempt did not meet the detector's internal acceptance criteria. Common causes include residual target gas in the environment during zero calibration, incorrect flow rate or span gas concentration, or a sensor degraded past its calibration threshold.
