Introduction
Flue gas analyzers measure hazardous gases like carbon monoxide (CO), sulfur dioxide (SO₂), nitric oxide (NO), and nitrogen dioxide (NO₂), alongside oxygen (O₂) and carbon dioxide (CO₂), to support safe combustion and regulatory compliance. Without regular calibration, even well-maintained analyzers drift — and that drift has real consequences.
Inaccurate readings from an out-of-spec analyzer can trigger US EPA enforcement actions with fines of $1,000 to $2,000+ per day for CEMS calibration failures. Beyond the financial exposure, uncalibrated instruments may miss dangerous gas concentrations entirely — a safety risk that no fine schedule captures.
This guide covers the key factors affecting calibration frequency, proven best practices for zero and span calibration, warning signs that recalibration is needed, and practical calibration schedules tailored to different operating environments.
TL;DR
- Annual calibration is the baseline minimum for accuracy and regulatory compliance
- How often you calibrate depends on your operating environment, usage intensity, analyzer type, and local regulations
- Proper calibration requires certified zero gas and NIST-traceable span gas—gas quality directly affects results
- Warning signs include data drift, error alarms, physical sensor damage, and failed compliance checks
- Without a structured calibration schedule, equipment accuracy degrades—and compliance gaps can be costly to fix
Factors That Affect How Often a Flue Gas Analyzer Needs Calibration
Annual calibration is the industry-standard baseline, but the right frequency for any given analyzer depends on several operational and environmental variables. The factors below can push that interval shorter — sometimes significantly.
Operating Environment and Conditions
Extreme temperatures, high humidity, and exposure to corrosive or particulate-laden flue gases accelerate sensor degradation. Electrochemical sensors are particularly vulnerable — exposure to high concentrations of NO, NO₂, or H₂S can override cross-sensitivity protections and damage CO sensors. Analyzers deployed in demanding industrial settings (refineries, power plants, waste incinerators) often require calibration every 3–6 months rather than annually.
Modern analyzers use automatic dilution pumps that mix samples with fresh air at ratios up to 40:1 to prevent over-ranging damage. Even so, harsh conditions wear sensors faster than any protective feature can fully offset. Analyzers in stable environments — laboratory settings or clean-burning natural gas applications — typically hold accuracy for a full year between calibrations.
Frequency and Intensity of Use
Continuous or high-volume use accelerates sensor wear. Analyzers deployed in CEMS applications or used daily in industrial operations face far more stress than those used periodically for spot-checks or maintenance testing.
Usage intensity considerations:
- Daily continuous monitoring requires more frequent calibration (often quarterly)
- Intermittent or weekly use typically sustains annual calibration intervals
- Analyzers idle for 3+ months may need verification before returning to service — sensors drift during storage
Analyzer Type: Portable vs. Fixed
Portable analyzers face variable conditions across multiple sites and are more prone to physical handling impacts, typically requiring more frequent calibration. Manufacturers like Kane, Bacharach, and Testo recommend calibration every 6 to 12 months for portable units used in industrial applications, with some heavy-use scenarios requiring quarterly checks.
Fixed or permanently installed analyzers in stable environments may sustain annual calibration intervals, though high-compliance industries (power generation, chemical manufacturing) often calibrate more frequently. Fixed CEMS are also subject to more rigorous daily and quarterly verification protocols.
Regulatory Requirements and Manufacturer Guidelines

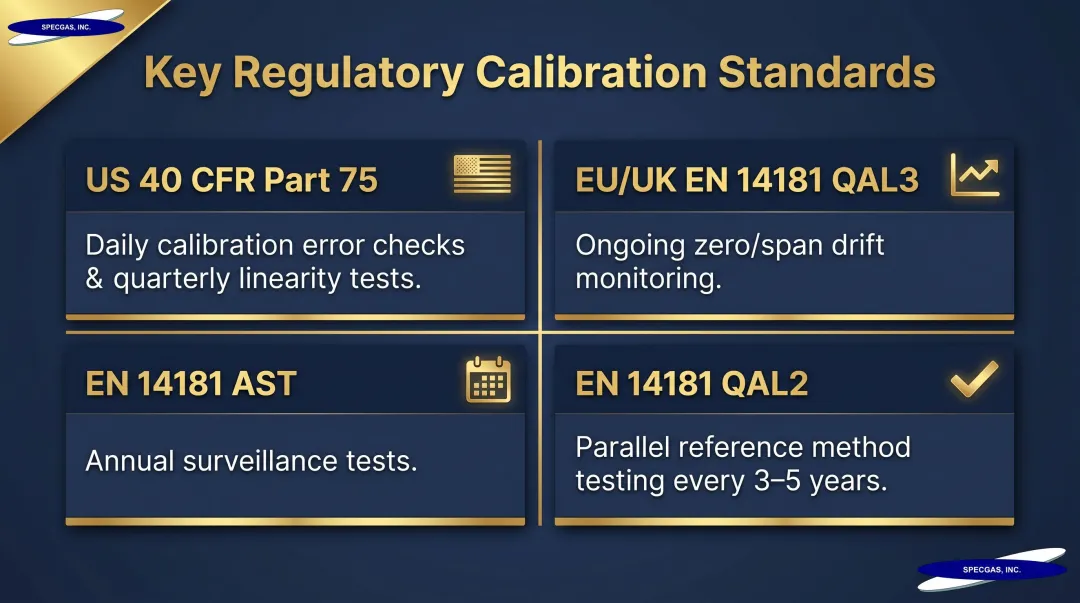

Regulatory bodies mandate specific calibration intervals and require documented records as proof of compliance. Key standards include:
- US — 40 CFR Part 75: Fixed CEMS must conduct daily calibration error checks and quarterly linearity tests
- EU/UK — EN 14181 QAL3: Ongoing zero/span drift monitoring between major audits
- EN 14181 AST: Annual surveillance tests to verify ongoing accuracy
- EN 14181 QAL2: Parallel reference method testing every 3–5 years
Manufacturer specifications set minimum calibration intervals based on sensor design. Following them maintains warranty coverage and protects your legal standing during regulatory audits — deviations are rarely worth the risk.
Flue Gas Analyzer Calibration: Best Practices and Step-by-Step Process
Calibration follows two distinct phases: zero calibration and span calibration. Both must be performed correctly using certified reference gases to produce traceable, defensible results.
Zero Calibration (Zeroing)
Zeroing establishes the baseline response of the analyzer by purging it with a zero gas—typically pure nitrogen or clean dry air free of the target gases. Under 40 CFR 72.2, zero air material must contain ≤0.1 ppm of SO₂, NOx, or total hydrocarbons, ≤1 ppm of CO, and ≤400 ppm of CO₂.
When performing a manual zero on portable units, place the probe in fresh outdoor ambient air, completely removed from the flue gas duct, to ensure no background pollutants skew the baseline. A stable zero baseline is essential before span calibration proceeds.
Span Calibration
Span calibration introduces a certified reference gas of known concentration into the analyzer, then adjusts the instrument's response until its displayed reading matches the certified value. The accuracy of the entire calibration hinges on the certified accuracy of that reference gas.

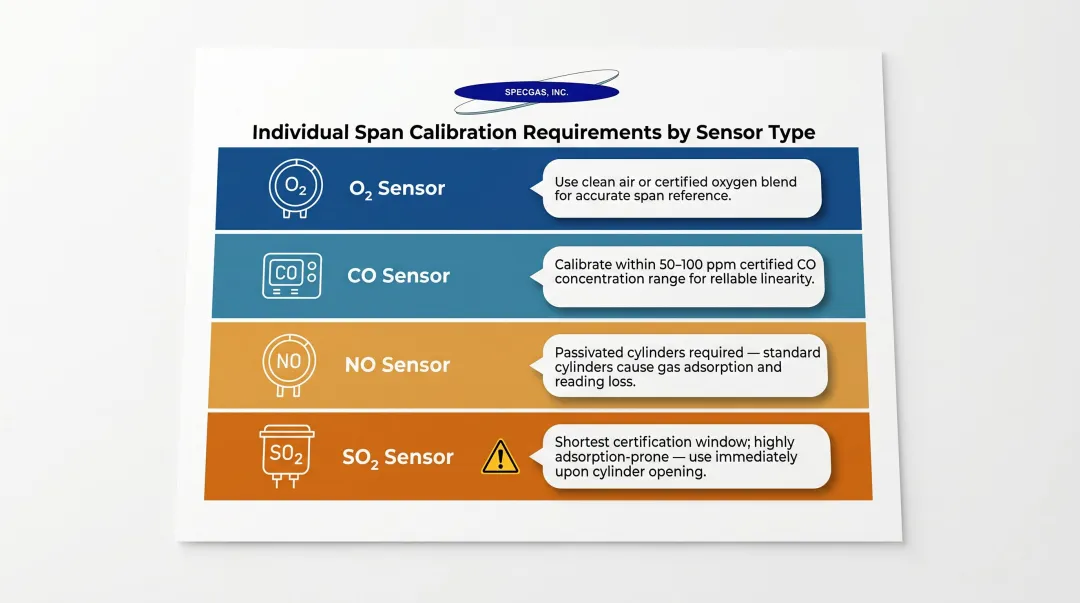

Multi-gas analyzers require individual span calibration for each sensor. Each sensor type has distinct calibration needs and drift characteristics:
- O₂ sensors — calibrated against air or a certified oxygen blend
- CO sensors — typically spanned at 50–100 ppm depending on operating range
- NO sensors — require passivated cylinders to prevent reactive gas loss
- SO₂ sensors — most prone to wall adsorption; shortest certification windows
A comprehensive span check tests all active sensors before returning the unit to service.
Using the Right Calibration Gas
Only NIST-traceable calibration gas blends — certified to exact target concentrations with documented traceability to national standards — should be used. Any deviation in the reference gas propagates systematic error into every subsequent measurement, undermining both data quality and regulatory standing.
Reactive calibration gases (SO₂, NO, H₂S) degrade rapidly due to cylinder wall adsorption, limiting EPA Protocol Gas certification periods to 4 years for SO₂ and 3 to 8 years for NO at low concentrations. Passivated aluminum cylinders are required to keep these reactive species stable at low ppm/ppb levels.
For reactive mixtures in particular, cylinder treatment quality directly determines shelf-life integrity. Suppliers like SpecGas Inc. use a proprietary internal cylinder treatment process to extend stability for reactive blends — an important factor when sourcing SO₂, NO, or H₂S calibration standards.
In-House Calibration vs. Professional Recertification
Routine in-house calibration with certified span gases is sufficient for daily or weekly span checks. These quick verifications confirm sensors remain within acceptable drift limits and are standard practice for CEMS operations.
Professional recertification is required for:
- Annual factory service and full multi-point calibration
- Sensor replacement or repair
- Full standards verification against national references
- Regulatory compliance audits requiring ISO 17025 certificates
Professional recertification includes physical inspection, component replacement as needed, full multi-point calibration against national standards, and issuance of a calibration certificate documenting "as-found" and "as-left" data.
Signs Your Flue Gas Analyzer Needs Recalibration
Even within a scheduled calibration interval, certain indicators should trigger an unscheduled recalibration to prevent data inaccuracies from compounding.
Data Drift and Inconsistent Readings

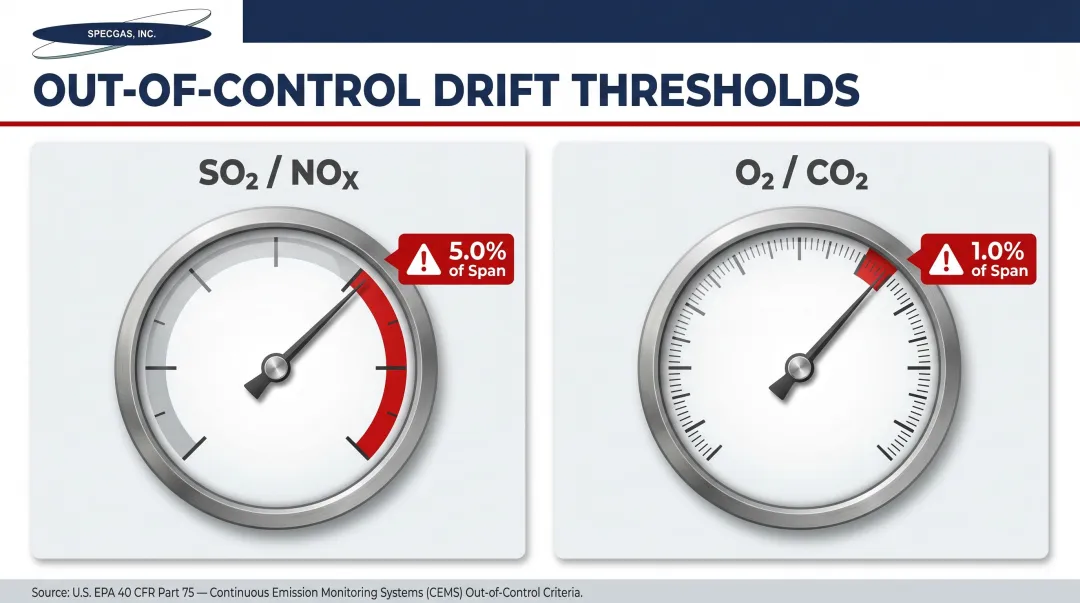

Measurement drift occurs when readings gradually or suddenly shift away from expected values. This is particularly noticeable when compared to historical data or parallel monitoring systems. Under EPA 40 CFR Part 75, a CEMS is considered "out-of-control" if daily calibration drift exceeds 5.0% of span for SO₂/NOx or 1.0% for O₂/CO₂.
Sensor aging is the most common driver of drift — once readings approach those thresholds during routine checks, recalibration should happen before the analyzer returns to active monitoring duty.
Frequent Error Messages or Diagnostic Alarms
Modern flue gas analyzers include built-in diagnostics that flag sensor degradation, out-of-range conditions, or calibration expiry. These alerts should never be dismissed — they often precede full sensor failure.
Common diagnostic warnings include:
- Sensor response time delays
- Out-of-range concentration alerts
- Calibration expiry notifications
- System fault codes indicating electronic or pneumatic issues
Physical Sensor Wear, Contamination, or Damage
Physical inspection may reveal signs that recalibration is needed:
- Visible soot or particulate buildup on sensors
- Corrosion on sensor contacts or probe components
- Physical damage from drops or impacts
- Evidence of over-ranging (exposing sensors to concentrations beyond rated range)
Any incident involving drops, impacts, or chemical overexposure should trigger immediate inspection and recalibration before returning the analyzer to service.
Failed Compliance Verification or Regulatory Audit
Any of the following require immediate recalibration before the analyzer is used again:
- Cross-check failure against an independent reference source
- Failed regulatory audit or compliance inspection
- "Calibration expired" status flagged by the analyzer or facility records
In regulated environments, these failures can void collected data entirely — forcing facilities to repeat monitoring periods and resubmit compliance reports to the EPA.
Flue Gas Analyzer Calibration Schedule: General Guidelines
Calibration schedules vary by application, environment, and regulatory context. Use the tiers below as a starting framework, then adjust based on your specific operating conditions and jurisdiction.

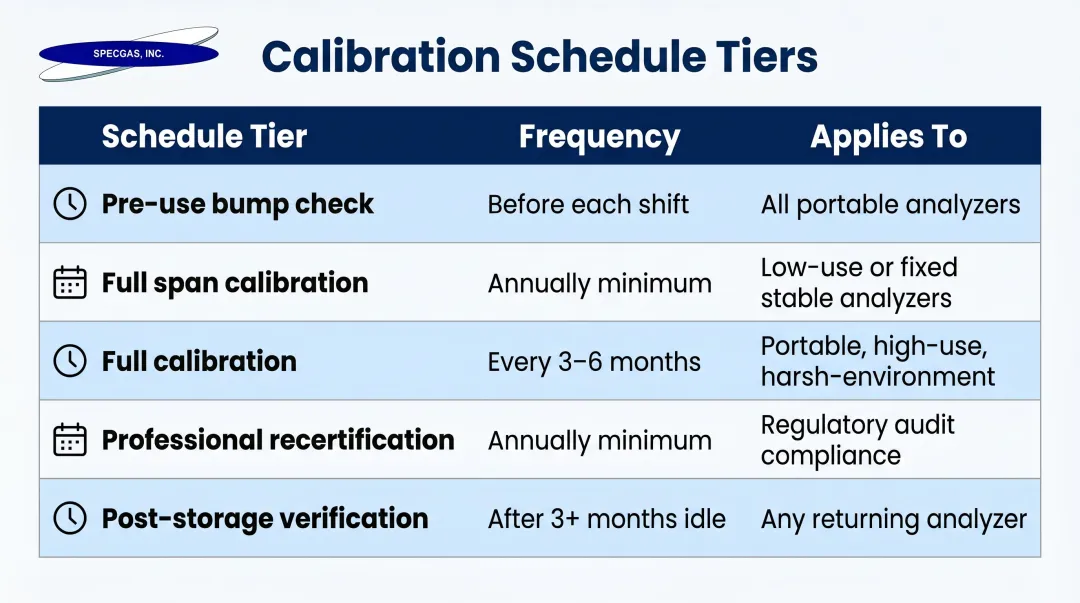

| Schedule Tier | Frequency | Applies To |
|---|---|---|
| Pre-use bump check | Before each shift or day of use | All portable analyzers |
| Full span calibration | Annually (minimum) | Low-use or fixed analyzers in stable environments |
| Full calibration | Every 3–6 months | Portable, high-use, or harsh-environment analyzers |
| Professional recertification | Annually (minimum) | All analyzers requiring regulatory audit compliance |
| Post-storage verification | After 3+ months of inactivity | Any analyzer returning to active service |
Bump tests expose the analyzer to a known gas concentration to confirm sensors are responding — they verify operability but do not replace full calibration.
Professional recertification means factory service with multi-point calibration and an ISO 17025 certificate. This is required for regulatory audits and warranty maintenance, no matter how many in-house checks you perform.
On sensor lifespan: Electrochemical sensors typically last 2 years (O₂) or 3–4 years (CO, NOx). Prolonged storage accelerates that degradation, which is why post-storage verification matters before returning a unit to service.
Regulatory requirements always override these general guidelines. Fixed CEMS under 40 CFR Part 75 require daily calibration error tests, while EU EN 14181 mandates ongoing QAL3 control charts. Always consult jurisdiction-specific regulations and manufacturer guidelines.
Conclusion
Flue gas analyzer calibration carries real consequences: non-compliance penalties, safety incidents, and unreliable emissions data all trace back to poor calibration practice. Both the frequency and quality of calibration matter equally. A poorly calibrated analyzer produces unreliable data that jeopardizes compliance, safety, and operational efficiency.
A well-structured calibration program combines several elements:
- Scheduled professional recertification at manufacturer-recommended intervals
- Routine in-house span checks using NIST-traceable calibration gases
- Early response to drift, inconsistency, or environmental exposure warning signs
Together, these practices protect measurement accuracy, keep you on the right side of regulators, extend analyzer lifespan, and head off costly downtime before it starts.
Frequently Asked Questions
How often should a flue gas analyzer be calibrated?
The industry-standard minimum is annual calibration. However, analyzers used heavily, exposed to harsh environments, or subject to strict regulatory requirements may need calibration every 3–6 months. Fixed CEMS require daily drift checks under US EPA regulations. Always follow manufacturer guidelines and local regulations as the final reference.
Where can I get a flue gas analyzer calibrated?
Professional recalibration can be done through the analyzer's manufacturer service center, an authorized service provider, or a A2LA- or NVLAP-accredited (ISO 17025) calibration laboratory. Calibration requires access to certified NIST-traceable reference gases and trained technicians who can perform full multi-point verification and issue compliance documentation.
What gases are used to calibrate a flue gas analyzer?
Calibration uses a zero gas (typically nitrogen or clean air) to set the baseline, and certified span gases of known concentration (such as CO, SO₂, NO, O₂ blends) traceable to NIST standards to set the response curve. Reactive gases require passivated aluminum cylinders to maintain stability at low ppm/ppb concentrations.
What is the difference between a bump test and a full calibration?
A bump test is a quick functional check exposing the analyzer to a known gas to verify it responds. A full calibration involves adjusting the instrument's output to precisely match certified reference concentrations using zero and span gases. Bump tests confirm operability but do not replace full calibration.
Can I calibrate my flue gas analyzer myself?
Basic span calibration can be performed in-house by trained personnel using NIST-traceable calibration gases and following the manufacturer's procedure. That said, annual professional recertification covering sensor inspection, multi-point calibration, and a traceable certificate is still required for regulatory compliance and warranty maintenance.
What happens if I use an uncalibrated flue gas analyzer?
Consequences include inaccurate emissions data, failed regulatory audits, and legal liability. US EPA enforcement imposes fines of $1,000 to $2,000+ per day for CEMS failures. Uncalibrated analyzers also create direct safety risks by missing hazardous gas levels, endangering personnel and operations.
