Introduction
In laboratories conducting emissions monitoring, semiconductor fabrication, or clinical testing, a single miscalibrated instrument can invalidate months of data— or trigger regulatory penalties. Certified Reference Materials (CRMs) solve this problem by providing materials with known, certified property values used to calibrate instruments, validate methods, and ensure measurement accuracy across industries.
Faulty measurements carry real consequences. A 2018 EPA enforcement action against Equilon Enterprises resulted in $2,500 per month per continuous emissions monitoring system (CEMS) in penalties due to calibration failures alone.
Research laboratories, air quality monitoring facilities, and semiconductor manufacturers all rely on CRMs to establish traceability and maintain compliance. Without properly certified materials, measurements cannot be meaningfully compared across different locations, times, or operators — and regulatory audits frequently fail.
This guide covers everything you need to know about CRMs:
- What CRMs are and how they differ from standard reference materials
- How traceability and uncertainty values are established
- Which industries depend on CRMs and why
- How to select the right CRM for your application
TLDR
- CRMs are reference materials with certified property values, documented measurement uncertainty, and SI traceability, as defined by ISO 17034
- They rank near the top of the reference material quality hierarchy, just below national standards like NIST SRMs
- Primary uses include instrument calibration, method validation, and quality control wherever traceable measurements are required
- CRMs differ from ordinary reference materials by carrying formal Certificates of Analysis that document uncertainty and SI traceability
- Gas mixtures are among the most widely used CRM types, with precision calibration gas blends applied across labs, monitoring, and manufacturing
What Is a Certified Reference Material?
ISO 17034 and ISO Guide 30 define a Certified Reference Material as "a reference material characterized by a metrologically valid procedure for one or more specified properties, accompanied by a certificate that provides the value of the specified property, its associated uncertainty, and a statement of metrological traceability."
Three elements must be present for a material to qualify as a CRM:
- Certified property value — a value assigned to a measurable property (concentration, purity, or mass) with formal certification
- Stated measurement uncertainty — a quantified range of values that could reasonably be attributed to the measurand
- Documented metrological traceability — an unbroken chain of calibrations linking the certified value back to SI units
These three requirements distinguish CRMs from lower-tier reference materials that may lack formal uncertainty budgets or traceable certification.
Beyond the requirements, CRMs span several material types. The ILAC framework organizes them into five categories:
- Pure substances (refined metals, chemical compounds)
- Standard solutions and gas mixtures (calibration gas blends fall here)
- Matrix reference materials (certified lead content in fish tissue)
- Physico-chemical reference materials (viscosity or melting point standards)
- Reference objects/artifacts (dimensional standards)
Metrological traceability means measurements can be compared across different locations, times, instruments, and operators because they link through an unbroken chain of calibrations back to an SI unit. For gas-phase CRMs like SpecGas's NIST Traceable Gas Standards, traceability chains link to primary NIST Standard Reference Materials through documented gravimetric preparation methods.
What Is a Certificate of Analysis (CoA) for a CRM?
A Certificate of Analysis is the formal documentation accompanying every CRM and must include:
| Required Element | Purpose |
|---|---|
| Certified property value | The measurand result with stated concentration or purity |
| Measurement uncertainty | Expanded uncertainty at stated confidence level (typically 95%) |
| Traceability statement | Documentation linking the value to SI units through NIST or equivalent standards |
| Homogeneity data | Statistical evidence of uniformity across all units in the batch |
| Stability/expiration information | Shelf life guarantees and storage conditions |
| Producer accreditation details | ISO 17034 and ISO/IEC 17025 accreditation information |
Auditors use the CoA as proof of compliance during ISO/IEC 17025 laboratory assessments. A CoA lacking an explicit traceability statement or expanded uncertainty budget does not meet ISO 17034 requirements.

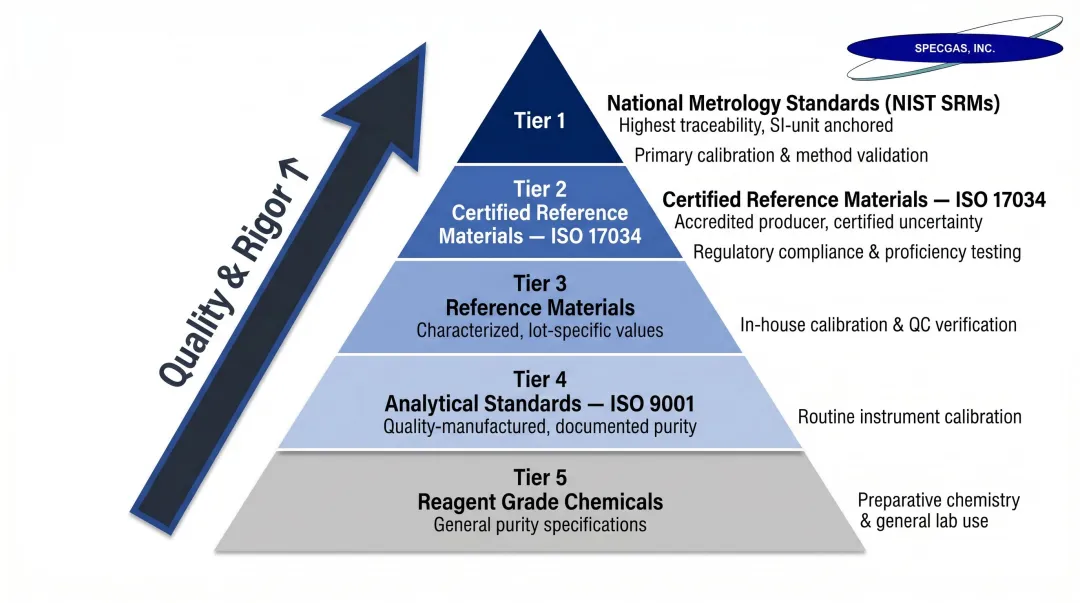

CRM vs. Other Reference Materials: Understanding the Quality Hierarchy
The reference material quality hierarchy follows a strict five-level pyramid:
| Level | Requirements | Application |
|---|---|---|
| National Metrology Standards | Highest metrological quality (NIST SRMs); directly traceable to SI units | Establishing national measurement scales, certifying commercial CRMs |
| Certified Reference Materials | ISO 17034 accreditation; documented uncertainty, SI traceability, and homogeneity data | Method validation, instrument calibration, regulatory compliance |
| Reference Materials | ISO 17034 production; homogeneous and stable but no formal uncertainty statement | Routine QC and precision monitoring |
| Analytical Standards | ISO 9001 production; characterized for purity but no homogeneity/stability testing | General laboratory use, qualitative analysis |
| Reagent Grade Chemicals | Basic purity specifications only | Preparatory work, research-grade applications |
Both CRMs and Reference Materials (RMs) must be produced by an ISO 17034-accredited producer — but only CRMs carry a formal uncertainty statement and SI traceability chain. That difference drives a 30–50% cost premium for CRMs and determines which material belongs in which application.
Use CRMs when the stakes require it:
- Regulatory compliance (such as EPA Protocol gases for CEMS)
- Establishing instrument calibration curves
- Standard additions quantification
- Method validation studies
Use RMs when precision requirements are less stringent:
- Method development and exploratory work
- Routine QC screening where exact uncertainty is less critical
- Qualitative analysis
- Internal control charting

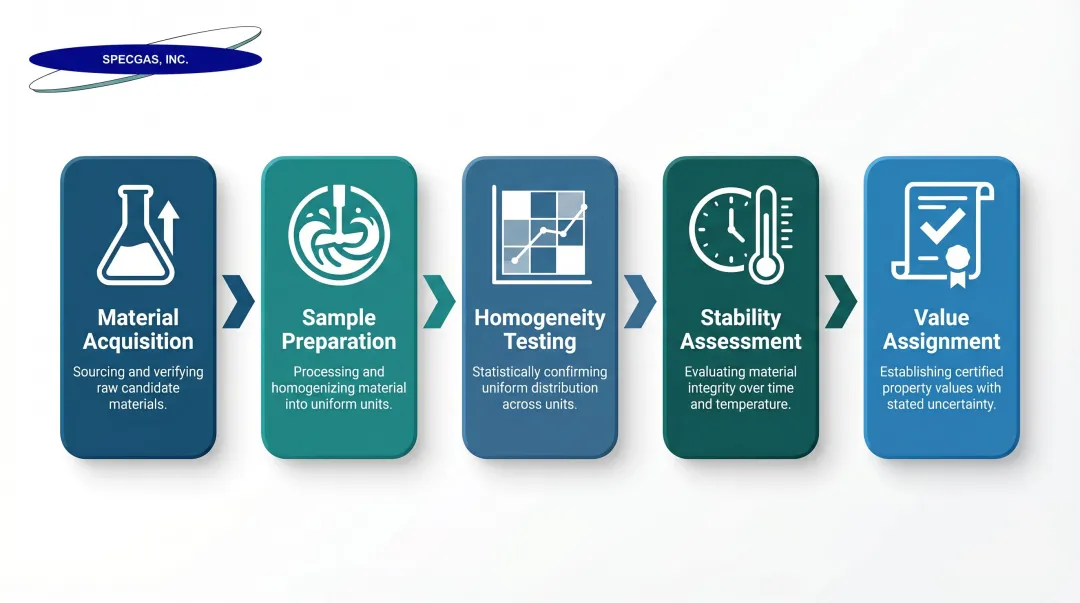

How Are Certified Reference Materials Made?
ISO Guide 35 and ISO Guide 17034 outline principal production steps:
- Material acquisition — Collection or synthesis of starting material
- Sample preparation — Homogenization and stabilization
- Homogeneity testing — Statistical verification of uniformity
- Stability assessment — Real-time and accelerated studies
- Value assignment — Characterization using metrologically valid procedures
Homogeneity Testing
Uniformity across all units in a batch is essential for CRM qualification. ISO Guide 35 uses Analysis of Variance (ANOVA) to evaluate homogeneity by comparing between-unit variation to within-unit variation. The F-test determines whether the ratio of mean squares (MS_between / MS_within) is statistically significant.
Key metric: Between-unit variation measures compositional differences from cylinder to cylinder within a production batch. High between-unit variance indicates poor homogeneity and directly increases measurement uncertainty.
For gas-phase CRMs, controlling this variance requires rigorous gravimetric blending and verification across randomly selected cylinders.
Stability Assessment Strategies
Two main approaches:
- Real-time studies — Holding units at proposed storage temperature and testing at defined intervals (quarterly, annually) to document long-term stability
- Accelerated studies — Using elevated temperatures to predict long-term stability through Arrhenius models
Stability is especially critical for gas-phase CRMs. Reactive gas mixtures can degrade inside cylinders through adsorption, condensation, or chemical reaction with untreated cylinder walls. SpecGas's proprietary internal cylinder treatment process directly addresses this by extending shelf life for reactive gases like formaldehyde, nitric oxide, and hydrogen sulfide.
Value Assignment and Uncertainty Calculation
The certified property value must be assigned using metrologically valid procedures governed by ISO 6142-1 for gas mixtures. Uncertainty is calculated from multiple sources:
- Characterization uncertainty — From analytical measurement variability
- Homogeneity component — From between-unit variance
- Stability component — From degradation over time
Per ISO 17034 Clause 6.2.3, producers cannot outsource the assignment of property values, uncertainties, or authorization of CRM documents. This responsibility stays with the accredited reference material producer and cannot be delegated.
How Are CRMs Used Across Industries?
Primary laboratory uses:
- Instrument calibration — Generating multi-point calibration curves, establishing traceability to SI units
- Method validation — Demonstrating accuracy and precision for new analytical methods
- Quality control — Control charting, drift correction, ongoing performance verification
- Second-source verification — Independent confirmation of measurement systems
Industry Applications Where CRMs Are Essential

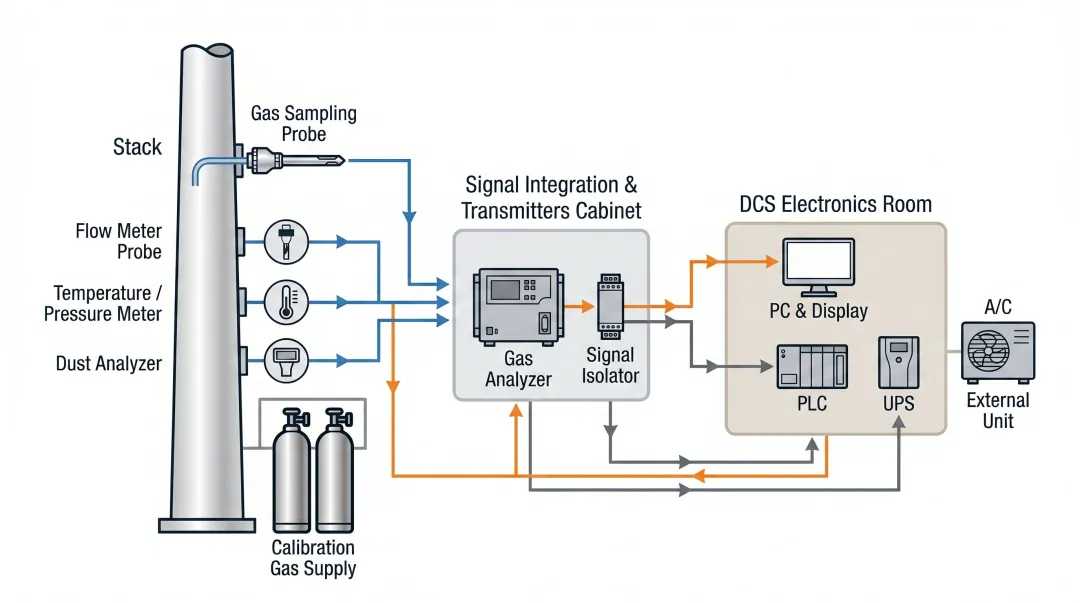

Air Quality and Emissions Monitoring
EPA 40 CFR Part 75 (Appendix A) requires EPA Protocol Gases, NIST/EPA-approved CRMs, or Research Gas Mixtures (RGMs) for calibrating Continuous Emission Monitoring Systems (CEMS). Stack emissions testing for pollutants like SO₂, NOx, and CO requires traceable calibration standards.
SpecGas produces formaldehyde calibration gases compliant with EPA Method 320 for stack emission testing, along with low-PPM and PPB blends of nitric oxide, sulfur dioxide, and hydrogen chloride for air quality applications.
Semiconductor and Electronics Manufacturing
Process gases must be verified to precise concentrations to maintain yield and product quality. SEMI standards govern high-purity gas requirements for semiconductor fabrication, where over 30 different gases may be used in integrated circuit production. SpecGas supplies phosphine (300 PPB to 5%), boron trifluoride, silicon tetrachloride, and dichlorosilane calibration standards for ion implantation, plasma etching, and CVD chamber cleaning applications.
Laboratory Testing
ISO/IEC 17025 (Clause 6.5.2) requires accredited labs to establish metrological traceability — either through calibration by a competent laboratory or via certified values from an ISO 17034-accredited CRM producer.
University research labs, pharmaceutical contaminant testing facilities, and environmental water testing labs all require NIST-traceable CRMs for compliance.
Consequences of Non-Traceable Materials
The certified reference materials market reached $3.5 billion in 2024 and is projected to grow to $5.2 billion by 2033 — driven by tightening regulatory requirements across every major industry above.
Those requirements exist for good reason. Without traceable CRMs, measurement results cannot be directly compared, regulatory audits fail, and instrument calibration drift goes undetected. The consequences are tangible: failed CEMS calibrations due to invalid gases trigger severe EPA penalties, and the Equilon consent decree set a benchmark of $2,500 per month per CEMS for calibration failures.
How to Choose and Source the Right CRM
Key Selection Criteria
Start by matching the CRM to your specific application:
- Analyte and concentration range — Confirm the CRM covers your target measurand at the relevant levels
- Matrix compatibility — The CRM matrix should match your sample type (gas phase, aqueous, solid)
- ISO accreditation verification — Confirm the producer holds ISO 17034 and ISO/IEC 17025 accreditation from an ILAC MRA signatory (A2LA, ANAB)
- Traceability chain documentation — Verify the CoA shows an unbroken chain back to NIST or another primary SI standard
Gas-Phase CRM Considerations
Cylinder material compatibility matters more than many buyers expect. ISO 11114-1 governs safe combinations of metallic cylinder materials and gas contents to prevent corrosive attack and composition drift. Steel cylinders work well for non-reactive gases (zero air, hydrocarbon blends), while aluminum cylinders with a proprietary internal treatment are required for reactive mixtures like ammonia, hydrogen sulfide, and nitrogen dioxide.
Shelf life and stability guarantees vary significantly between producers — and this is where reactive gas mixtures get complicated. Adsorption and chemical reactions with cylinder walls can degrade concentration accuracy over time. Producers like SpecGas address this with a proprietary cylinder treatment process and a formal Stability Guarantee for reactive mixtures, so buyers can confirm expected shelf life before purchasing.
When evaluating a producer's in-house blending capabilities, look for specifics: gravimetric blending methods, documented concentration range (SpecGas covers 300 PPB to 10%), and proven stability for difficult analytes like formaldehyde and nitric oxide. In-house blending also tends to mean shorter lead times and the ability to accommodate rush requests.
Custom CRMs vs. Stock Standards
If off-the-shelf CRMs don't match your required analyte, concentration, or matrix, qualified ISO 17034 producers can manufacture custom blends. SpecGas specializes in custom NIST-traceable calibration gas blends tailored to client specifications, accommodating multi-component mixtures, trace PPB levels, and specialty balance gases.
To discuss a custom blend for your application, contact SpecGas at (215) 443-2600 or reach out via specgasinc.com.
Frequently Asked Questions
What is a certified reference material and how does it differ from a standard reference material?
A CRM has three defining features a standard reference material may lack: a formally certified property value, a stated measurement uncertainty, and a documented metrological traceability chain to SI units. Standard reference materials are produced under less rigorous requirements and typically omit both uncertainty budgets and formal traceability statements.
How are certified reference materials made?
CRMs are produced through material synthesis or collection, homogenization, homogeneity testing (using ANOVA to verify uniformity), stability assessment (real-time and accelerated studies), and certified value assignment with full uncertainty budgets—all governed by ISO Guide 17034 and ISO Guide 35.
How do you use a certified reference material?
CRMs calibrate analytical instruments, validate measurement methods, perform quality control checks, and verify second-source accuracy. Always follow the Certificate of Analysis for minimum sample size, storage conditions, and period of validity.
What is a NIST certified reference material?
NIST Standard Reference Materials (SRMs) are CRMs that meet NIST-specific criteria and represent the highest tier of the reference material hierarchy. Commercial producers can issue "NIST-traceable reference materials" by linking their certified values through a documented chain back to NIST SRMs, as SpecGas does with its NIST Traceable Gas Standards.
Where can I buy certified reference material?
CRMs are available from ISO 17034-accredited reference material producers. For gas-phase CRMs and precision calibration gas blends, SpecGas offers NIST Traceable Gas Standards with faster-than-average lead times, in-house blending, and proprietary cylinder treatment for reactive mixtures. Contact SpecGas at (215) 443-2600 or visit specgasinc.com.
What are examples of reference materials?
Common CRM examples across ILAC categories include pure chemical substances (refined copper, high-purity silicon), calibration gas mixtures (CO at 10 µmol/mol in nitrogen, SO₂ at 50 µmol/mol in nitrogen), natural matrix materials (certified lead content in fish tissue), physico-chemical standards (liquid refractive index standards), and dimensional artifacts (gauge blocks).
