Introduction
Chemical plant workers face simultaneous exposure to dozens of hazardous gases—toxic vapors like hydrogen sulfide and chlorine, flammable hydrocarbons approaching explosive limits, and oxygen-displacing inert gases. A single undetected leak can cause catastrophic injury, process shutdown, or explosion. In these high-stakes environments, a reliable gas detection system isn't optional—it's foundational safety infrastructure.
What follows is a practical reference for safety managers, plant engineers, EHS professionals, and procurement teams evaluating or upgrading their gas detection programs.
TLDR:
- Chemical plants must detect three hazard types: toxic gases (H₂S, Cl₂, NH₃), flammable gases (LEL-monitored), and oxygen deficiency/enrichment
- No single sensor covers all hazards; facilities must combine electrochemical, catalytic bead, IR, and PID technologies
- ISA-TR84.00.07-2018 placement standards, matched to gas density, achieve >90% detection reliability in high-risk zones
- Daily bump tests and NIST-traceable calibration gas mixtures prevent the 1-in-2,500 instrument failure rate
- Integrated detection enables automated DCS/SIS shutdowns and generates alarm data to identify recurring leak sources
Gas Hazards in Chemical Plants: What You're Up Against
Chemical plants are uniquely hazardous because multiple gas types can be present simultaneously—each requiring different detection technologies. Understanding the three primary hazard categories is essential before selecting any equipment: toxic gases that poison at ppm levels, flammable gases that explode above lower explosive limits, and oxygen-displacing gases that asphyxiate.
Toxic Gases
The most common toxic gases found in chemical plants include:
- Hydrogen Sulfide (H₂S): Colorless with a rotten egg odor that causes olfactory fatigue, making your nose an unreliable detector. OSHA ceiling limit is 20 ppm; it becomes flammable above 4% concentration
- Chlorine (Cl₂): Greenish-yellow with a pungent odor. OSHA ceiling limit is 1 ppm; extremely corrosive to respiratory tissue
- Ammonia (NH₃): Colorless with a pungent suffocating odor. OSHA TWA is 50 ppm; flammable between 15-28% concentration
- Hydrogen Chloride (HCl): Colorless to slightly yellow with pungent odor. OSHA ceiling limit is 5 ppm; highly corrosive
- Nitrogen Oxides (NO, NO₂): Nitric oxide is colorless; nitrogen dioxide is reddish-brown. OSHA limits are 25 ppm (NO) and 5 ppm ceiling (NO₂)
- Sulfur Dioxide (SO₂): Colorless with characteristic irritating odor. OSHA TWA is 5 ppm
- Phosphine (PH₃): Colorless gas with OSHA TWA of just 0.3 ppm
- Carbon Monoxide (CO): Colorless, odorless—impossible to detect without sensors. OSHA TWA is 50 ppm; flammable between 12.5-74%
Gas detection systems must be calibrated against short-term exposure limits (STEL) and time-weighted averages (TWA), the OSHA thresholds defining safe exposure over 15-minute and 8-hour periods. Because many of these gases are colorless and odorless, sensor-based detection is the only reliable safeguard.
Flammable and Explosive Gases
Combustible gas monitoring focuses on Lower Explosive Limit (LEL) and Upper Explosive Limit (UEL): the concentration boundaries within which a gas mixture can ignite. Keeping gases like hydrogen, methane, and hydrocarbons below LEL is the primary target for preventing ignition events.
Key flammable gases and their LEL thresholds:
- Hydrogen (H₂): LEL 4.0%, UEL 75%—becomes explosive above 4% concentration
- Methane (CH₄): LEL 5.0%, UEL 15%
- Propane (C₃H₈): LEL 2.1%, UEL 9.5%—heavier than air, collects near floors
- n-Hexane: LEL 1.1%, UEL 7.5%
Most fixed combustible gas detectors alarm at 25% LEL, giving operators time to respond before concentrations reach dangerous levels.
Oxygen Hazards
Oxygen deficiency and enrichment represent distinct hazards. OSHA defines oxygen-deficient atmospheres as containing less than 19.5% oxygen by volume, and oxygen-enriched atmospheres as exceeding 23.5%.
Oxygen deficiency occurs when inert gases like nitrogen, argon, or CO₂ displace breathable air in confined spaces or poorly ventilated areas. Workers can lose consciousness within seconds without warning.
Oxygen enrichment above 23.5% dramatically increases fire and explosion risk—materials that don't normally burn become combustible, and fires intensify rapidly.
Both conditions require dedicated O₂ monitoring alongside toxic and combustible gas sensors.

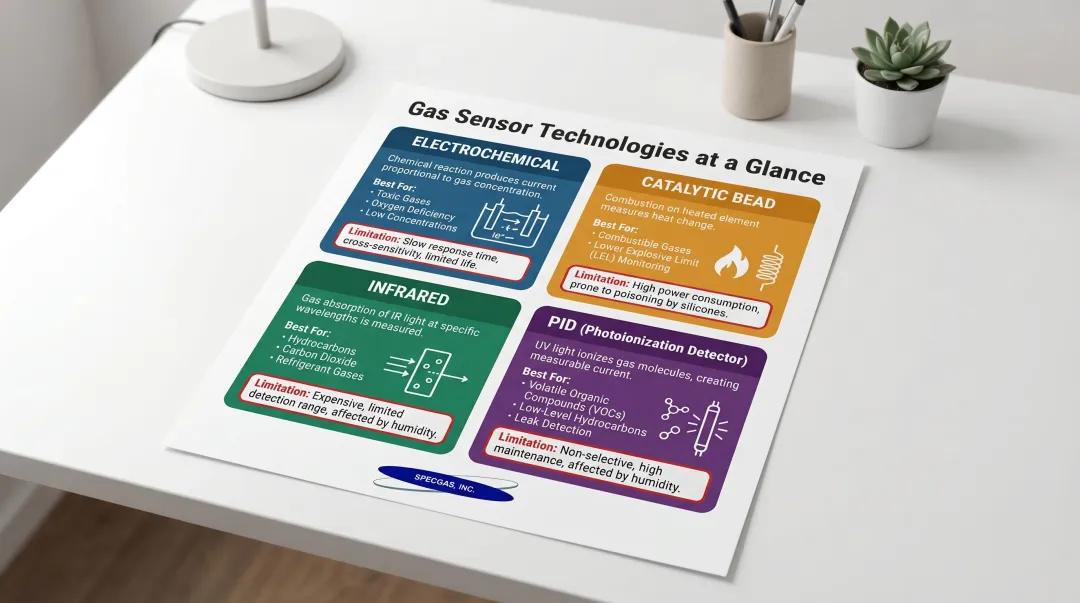

Types of Gas Detection Systems for Chemical Plants
Chemical plants deploy two main form factors: portable detectors (personal monitors and area monitors) protect individual workers moving through variable environments, while fixed gas detectors provide continuous monitoring at high-risk locations with integration to plant control systems. Most comprehensive safety programs use both. The sensor technology inside each detector determines what gases it can reliably catch—and where it will fall short.
Electrochemical Sensors
Electrochemical sensors work by allowing target gas to diffuse through a membrane where it oxidizes at an electrode, producing a measurable electrical current proportional to gas concentration. These sensors excel at detecting toxic gases at ppm-level concentrations.
Best applications: H₂S, CO, Cl₂, NH₃, NO₂, SO₂, and oxygen monitoring
Limitations:
- Sensitive to extreme temperature and humidity fluctuations
- Electrode degradation over time reduces accuracy
- Typical lifespan: 1-3 years (up to 5 years for robust industrial models)
- Corrosive environments accelerate sensor degradation
Catalytic Bead (Pellistor) Sensors
Pellistor sensors measure combustible gases by oxidizing them on a heated catalyst and measuring the resulting temperature differential.
Best applications: LEL detection of hydrocarbons, hydrogen, and methane
Critical limitations:
- Susceptible to permanent poisoning from silicones, lead, sulfur compounds, and halogenated hydrocarbons—all common in chemical plants
- Requires oxygen to operate (won't work in inert atmospheres)
- Poisoning is irreversible and causes gradual loss of sensitivity
- Typical lifespan: 3-5 years under ideal conditions
If your facility uses silicone-based compounds or processes halogenated hydrocarbons, pellistor reliability becomes questionable.
Infrared (IR) Sensors
IR sensors measure gas concentration by detecting absorption of infrared light at specific wavelengths. Point IR (NDIR) sensors monitor fixed locations, while open-path IR sensors detect gas clouds across distances up to 200 meters.
Where they work best: Hydrocarbon detection, CO₂ monitoring, and areas with low oxygen or corrosive atmospheres
Key advantages:
- Immune to poisoning (no chemical reaction occurs)
- Work reliably in oxygen-deficient environments
- Long lifespan: 5+ years
Critical limitation: IR sensors cannot detect hydrogen (H₂) because hydrogen molecules don't absorb infrared light. Never use IR as the sole sensor where hydrogen is present.
Photoionization Detectors (PID)
PID sensors use UV light (typically 10.6 eV lamp) to ionize volatile organic compounds (VOCs), measuring the resulting current to determine concentration. They detect VOCs at ppb-to-ppm levels.
Typical use cases: Tank entry checks, VOC surveys, leak detection, and confirming ventilation effectiveness before confined space entry
Limitations:
- Non-compound-specific—requires correction factors to identify specific gases
- Typically calibrated to isobutylene as a reference
- Should be used in conjunction with compound-specific sensors for safety-critical applications
- Lamp and sensor lifespan: 1-2 years
Multi-Gas and Fixed System Monitors
Modern multi-gas monitors combine several sensor technologies into one portable unit: electrochemical, catalytic bead, PID, and IR sensors working together to catch combustible gases, toxics, and VOCs in a single pass.
Fixed systems connect dozens or hundreds of sensors to SCADA/DCS for continuous facility-wide monitoring. Key capabilities include:
Fixed systems connect dozens or hundreds of sensors to SCADA/DCS for continuous facility-wide monitoring. Key capabilities include:
- Automated alarm escalation as concentrations rise through defined thresholds
- Integration with safety instrumented systems (SIS) for automatic process shutdown
- Centralized data logging for regulatory reporting and incident analysis
- Zone-based alerts that identify exactly where a release is occurring
How to Choose the Right Gas Detection System
Start with a Formal Gas Hazard Inventory
Sensor selection starts with a comprehensive inventory: identify every gas used, stored, produced, or generated as a byproduct in your facility. This step cannot be shortcut.
For each gas, document the key physical properties your sensor selection depends on:
- Vapor density (heavier or lighter than air determines sensor placement height)
- Expected concentration ranges (ppm vs. LEL vs. %)
- Flammability characteristics and ignition thresholds
- Applicable OSHA PELs and ACGIH TLVs
Match Sensors to Environmental Conditions
Chemical plant environments narrow sensor choices significantly:
Environmental challenges:
- High humidity and temperature extremes
- Dust and particulate contamination
- Corrosive fumes
- Electromagnetic interference from motors and VFDs
Required specifications:
- IP66 or IP67 rated enclosures for washdown areas (IP66 = jet water resistant; IP67 = temporary immersion)
- ATEX (EU) or IECEx (international) explosion-proof certification for hazardous area classifications
- Stainless steel or corrosion-resistant housings in reactive gas environments
Verify certification for the appropriate Zone (Zone 0 for continuous hazard, Zone 1 for occasional hazard, Zone 2 for rare hazard) or the equivalent North American Class/Division rating before purchasing any fixed unit.

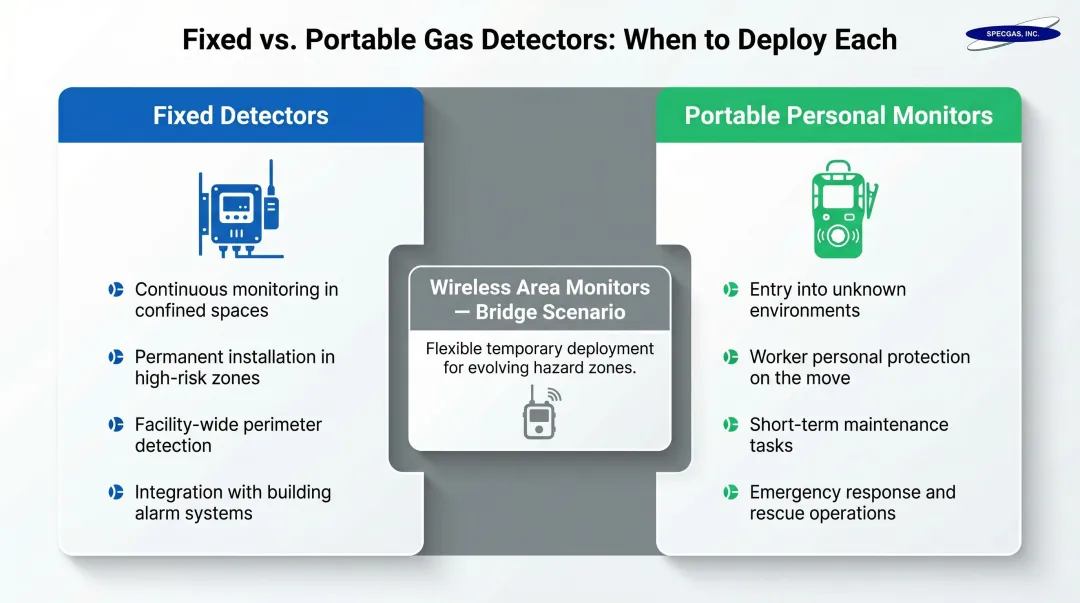

Fixed vs. Portable Decision Framework
Once environmental specs are confirmed, deployment type is the next call. Deploy fixed sensors when:
- Continuous monitoring is required at known high-risk locations (reactor vessels, storage tanks, valve manifolds)
- Integration with automated shutdown systems is necessary
- Perimeter monitoring for community protection is mandated
- Environmental conditions are stable and predictable
Deploy portable personal monitors when:
- Workers move through variable environments
- Confined space entry or hot work permits are required
- Maintenance, turnarounds, or shutdowns require temporary coverage
- Individual breathing zone protection is the priority
Wireless area monitors bridge gaps during turnarounds by providing temporary fixed coverage without permanent installation.
Practical Selection Checklist
- Target gas compatibility confirmed with sensor technology
- Detection range matches expected concentrations (ppm vs. LEL vs. %)
- Response time under 30 seconds for critical gases
- Alarm threshold configurability (low/high, STEL, TWA)
- Output signal compatibility (4-20mA, Modbus, HART) with plant DCS
- Certification requirements met (ATEX, IECEx, or CSA depending on region)
- Matching calibration gases available for all target gases
Gas Detector Installation Best Practices
Proper installation is where detection systems succeed or fail. Sensors placed incorrectly, regardless of quality, will miss hazardous releases.
Sensor Placement by Gas Density
Gas density relative to air dictates mounting height:
| Gas Density | Mounting Height | Example Gases |
|---|---|---|
| Heavier than air | 30 cm (12 inches) from floor | Propane, H₂S, Hexane, Chlorine, CO₂ |
| Lighter than air | Near ceiling, roof peaks, upper corners | Hydrogen, Methane, Ammonia |
| Similar to air | Breathing zone (4-6 feet) | Carbon Monoxide |
Note: Airflow and ventilation patterns can override vapor density. Always place sensors where air currents are likely to carry gas, not where fresh air vents dilute samples.
Prioritize Leak Source Proximity
Fixed detectors must be sited near potential release points:
- Pipe flanges and compression fittings
- Valve stem seals and packing glands
- Pump mechanical seals
- Storage tank vents and pressure relief devices
- Process drain points
- Sample ports and analyzers
Once leak sources are mapped, position sensors downstream relative to prevailing air currents — that's where migrating gas will actually reach.
Implement Redundancy in High-Risk Zones
ISA-TR84.00.07-2018 requires >90% scenario coverage to claim a Risk Reduction Factor (RRF) greater than 10. A single-point failure in a critical area can be catastrophic.
Best practices:
- Deploy overlapping detection coverage in high-consequence areas
- Use diverse sensor technologies where practical, such as IR paired with electrochemical
- Design alarm escalation protocols that reach field workers, control rooms, and safety teams at the same time
- Ensure that removal of a single sensor for calibration doesn't compromise area safety
Calibration and Maintenance: Keeping Your Detection System Accurate
Why Calibration Matters
A gas detector that responds to the wrong concentration—or fails to respond at all—creates false safety. Calibration involves exposing the sensor to a known concentration of target gas (calibration gas) to verify and adjust detector response. OSHA and manufacturer guidelines govern calibration schedules, and non-compliance can void certifications during regulatory audits.
Bump Testing vs. Full Calibration
Bump testing is a quick daily challenge test confirming:
- Sensor responds to gas
- Alarm activates at preset threshold
- Batteries and electronics function
Expose the detector to a known gas concentration above the alarm setpoint. If the alarm sounds within 30 seconds, the unit passes. Industrial Scientific data shows that 3 out of every 1,000 detectors (0.3% failure rate) will fail a daily bump test. Extending the interval to 20 days doubles the expected failure rate.
Full calibration adjusts sensor output to match the known gas concentration. This corrects sensor drift and restores accuracy. Portable detectors typically require daily bump tests and monthly calibration; fixed systems follow quarterly or semi-annual schedules depending on environmental conditions and manufacturer specifications.
Calibration Gas Quality Determines Accuracy
A detector is only as accurate as the calibration gas used to set its response. Sensors calibrated with imprecise or unstable gas mixtures produce inaccurate readings in the field, potentially causing missed alarms or false readings.

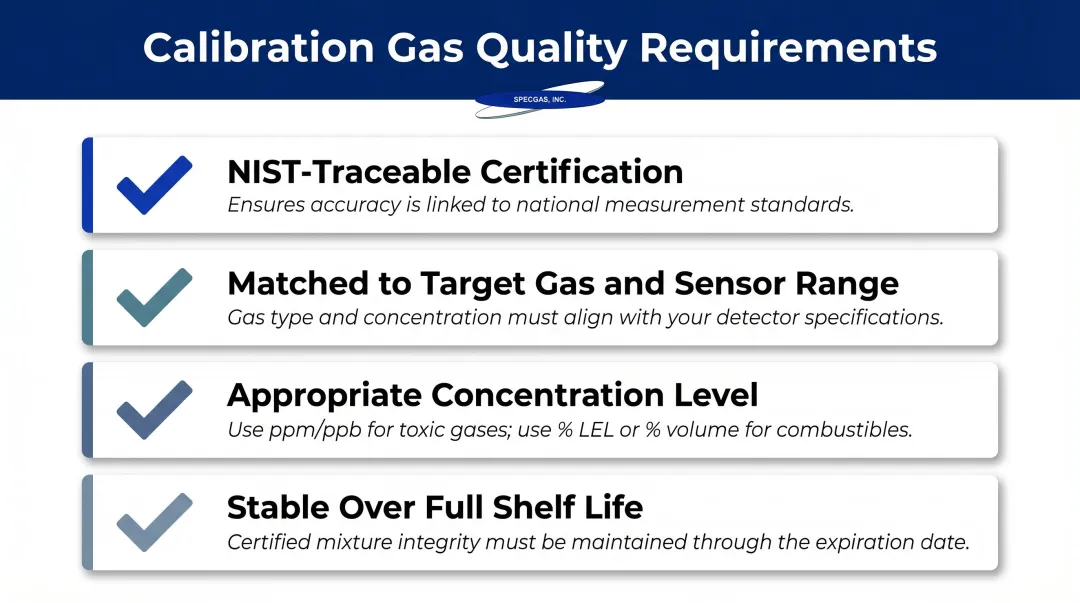

Calibration gas must meet four requirements:
- Certified NIST-traceable to national measurement standards
- Matched exactly to the target gas and sensor range (or an approved surrogate)
- Appropriate concentration: low-ppm or ppb for toxic gas sensors, percentage-level for combustible sensors
- Stable over its full shelf life — reactive gases require specialized cylinder treatment to prevent degradation
Reactive gas mixtures — including H₂S, Cl₂, NH₃, HCl, and PH₃ — are particularly prone to instability, making cylinder treatment and certified shelf life critical selection criteria. SpecGas Inc. produces NIST-traceable calibration gas blends from 300 ppb to percentage concentrations, including reactive gas mixtures with proprietary cylinder treatment for verified shelf life stability. Their blends cover single-component toxic gases and multi-component four-gas detector mixtures.
Common Calibration Mistakes to Avoid
- Wrong gas mixture: Using a different gas than the sensor is designed to detect (e.g., using pentane on a sensor calibrated for hexane)
- Expired calibration gas: Gas mixtures degrade over time; check expiration dates before use
- Skipped calibrations: Supply delays are not acceptable—maintain adequate inventory
- Missing documentation: OSHA PSM audits require calibration records with dates, technician names, gas lot numbers, and results
Using Gas Detection Data to Improve Plant Safety
Modern gas detection systems do more than trigger alarms — they generate a continuous record of hazardous conditions that safety teams can mine for patterns, prioritize maintenance decisions, and drive faster emergency responses. Here's how to put that data to work.

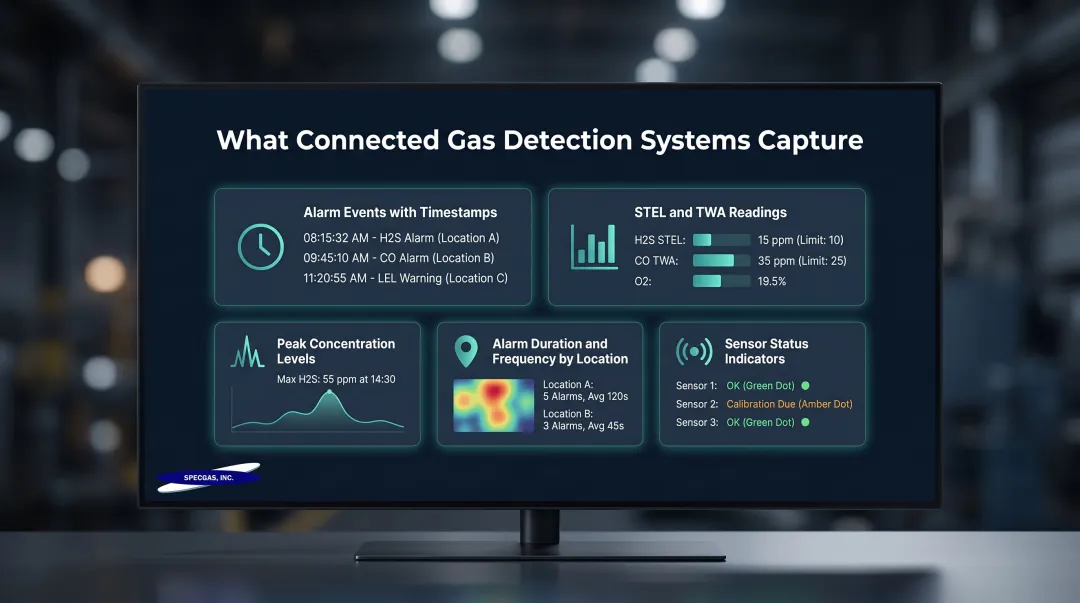

Key Data Points Modern Systems Capture
Connected gas detection systems record:
- Low and high alarm events with timestamps
- STEL (15-minute) and TWA (8-hour) readings
- Peak concentration levels during each event
- Alarm duration and frequency by location
- Sensor status (operational, calibration due, fault)
Identify Problem Areas from Historical Alarm Data
Recurring alarms in specific zones indicate underlying problems:
- Frequent alarms near the same valve or pump point to packing wear or flange gasket degradation
- Concentration spikes during specific operations reveal upstream process control issues
- Persistent low-level alarms in one zone often indicate a ventilation failure, not a source leak
Use alarm history to rank maintenance projects by actual risk — not just inspection schedules.
Enable Real-Time Response
Historical data drives prevention, but real-time connectivity cuts the time between hazard detection and response. Cloud-connected monitors and DCS-integrated systems (IEC 61511) accomplish this by:
- Sending instant text/email alerts to control rooms and lone workers
- Triggering automated process shutdowns via Safety Instrumented Systems (SIS)
- Activating local alarms and strobes to initiate personnel evacuation
Case study: An Emerson cellulose acetate plant integrated continuous gas analysis with their DCS, reducing acetone emissions from 1,000 ppm to 300 ppm and eliminating plant shutdowns that previously cost $10 million annually.
Frequently Asked Questions
What gases are most commonly monitored in chemical plants?
Chemical plants typically monitor toxic gases (H₂S, Cl₂, NH₃, HCl, CO, SO₂), combustible gases at LEL thresholds (hydrogen, methane, hydrocarbons), oxygen levels, and VOCs. The specific gases depend on the raw materials, intermediates, and finished products handled at your facility.
What is the difference between a fixed and portable gas detector?
Fixed detectors are permanently installed at high-risk locations for continuous monitoring and integration with plant control systems for automated shutdowns. Portable detectors protect individual workers moving through variable environments by monitoring their immediate breathing zone. Most chemical plants require both types.
How often should gas detectors be calibrated in a chemical plant?
Portable detectors typically require a daily bump test and monthly full calibration under normal conditions. Fixed systems typically follow quarterly or semi-annual calibration schedules. Always follow manufacturer instructions and applicable OSHA/regulatory requirements; harsh environments may require more frequent calibration.
What is a bump test and why is it required?
A bump test exposes the detector to a known concentration of calibration gas above the alarm threshold to confirm the sensor responds and alarms activate. It's a 30-second daily verification—distinct from full calibration—that catches sensor failures before workers enter hazardous areas.
What regulations govern gas detection in chemical plants?
Key standards include OSHA PSM (29 CFR 1910.119) for mechanical integrity, OSHA PELs/STELs for specific gases, ATEX/IECEx for explosive atmosphere equipment, and ISA-TR84.00.07-2018 for fire and gas system design. Always verify applicable state and local requirements for your facility.
Why does calibration gas quality matter for gas detector accuracy?
Calibration errors don't stay contained — imprecise, unstable, or expired gas mixtures skew all field readings, potentially causing missed alarms or false alerts. NIST-traceable calibration gas with verified stability is what ensures your detectors provide reliable protection when it matters.
