Introduction
At 193 nm, the ArF excimer laser carries photons energetic enough to break molecular bonds directly—no heat required. That single physical property governs everything downstream: photoresist exposure in semiconductor lithography, corneal ablation depth in LASIK surgery, and the sub-micron feature resolution possible in precision micromachining.
The nominal 193.3 nm center value is just the starting point. Real-world performance depends on spectral bandwidth, wavelength stability across millions of pulses, and gas fill purity. Wavelength drift from gas depletion, bandwidth broadening that destroys lithographic resolution, contamination-driven optical degradation — these are practical failure modes, not edge cases.
This guide covers what 193 nm means in both quantum and engineering terms, how spectral output is characterized — bandwidth, stability, line narrowing — what governs acceptable operating ranges, and the consequences of wavelength deviation in high-precision applications.
TL;DR
- The ArF laser emits at 193 nm in the deep ultraviolet range with 6.42 eV photon energy
- 193 nm is a fixed molecular transition of the ArF* exciplex, not a tunable parameter
- Broadband ArF output spans ~0.5 nm FWHM; lithography-grade systems narrow that to <1 pm FWHM
- Gas purity and fill pressure are the main variables you can control to maintain wavelength stability
- Matching center wavelength and bandwidth to your optical system determines whether a laser suits lithography, surgery, or research use
What the 193 nm Wavelength Represents in an ArF Excimer Laser
The 193 nm emission places the ArF excimer laser firmly in the deep ultraviolet (DUV) spectrum. This wavelength sits between KrF at 248 nm and the extreme ultraviolet boundary, delivering a photon energy of 6.42 eV—high enough to directly break molecular bonds through photodissociation rather than thermal heating.
The 193 nm wavelength represents significantly higher energy than visible light (400–700 nm) and shorter-wavelength UV systems alike. Compared to KrF (248 nm, 5.00 eV) and XeCl (308 nm), ArF delivers proportionally higher photon energy, enabling distinct material interactions at the atomic level.
The Quantum Origin of 193 nm
The ArF* exciplex forms when excited argon reacts with fluorine gas (Ar + F₂ → ArF*). This molecular complex exists only in the excited state — the ground state is inherently repulsive and dissociates immediately. Population inversion exists by default because the lower laser level empties virtually instantaneously.
The 193 nm emission results from the bound-to-repulsive electronic transition as the excited ArF* complex decays. This wavelength is a fixed physical constant determined by the molecular energy gap, not an adjustable parameter. An ArF laser cannot be tuned to 190 nm or 195 nm.
Because 193 nm is fixed by molecular physics, every optical component must be specifically engineered for this wavelength. Standard borosilicate glass (BK7) is completely opaque at 193 nm. Materials that meet the transmission threshold include:
- Ultra-pure calcium fluoride (CaF₂) — maintains >99.5% per cm transmission at high fluence
- ArF-grade synthetic fused silica — the standard for windows, lenses, and beam delivery optics
- Specialized coatings — required on all optical surfaces; standard AR coatings degrade rapidly at 193 nm
Factors That Influence 193 nm Wavelength in Real-World Operation
While the theoretical emission wavelength is fixed at 193.3 nm, measured center wavelength and spectral profile in operating lasers vary based on gas mixture composition, chamber pressure, and gas purity.
Gas Mixture Degradation
As fluorine is consumed through reactions with chamber walls and electrodes, the laser must increase operating voltage to maintain pulse energy. This voltage increase shifts energy to the latter part of the pulse, altering the integrated spectral linewidth.
Research shows that impurity concentrations above 10 ppm—particularly oxygen-fluorine compounds like O₂, CF₄, and HF generated in the discharge—strongly deteriorate output characteristics through 193 nm light absorption.
Electrode Erosion and Contamination
Electrode erosion, chamber outgassing, and contamination from window degradation (particularly CaF₂ or MgF₂ windows) introduce trace impurities that alter the lasing medium over time. The buildup causes wavelength drift and output instability across a gas lifetime — typically rated in tens of millions to billions of pulses based on system design.
Pressure and Temperature Interactions
Higher buffer gas pressure broadens the gain bandwidth by extending pulse duration. Key effects of pressure and neon concentration on spectral output include:
- Increasing neon from 0% to 96.8% stretches pulse length from roughly 8 ns to 25 ns
- Longer pulses allow more round-trips through line-narrowing optics, narrowing spectral linewidth
- Non-nominal pressures shift peak emission slightly, making precise gas fill specification critical to wavelength reproducibility
Spectral Range and Bandwidth of ArF Laser Output
The nominal center wavelength for ArF excimer lasers is 193.3 nm (in air) or 193.4 nm (in vacuum). But center wavelength alone doesn't define laser performance—spectral bandwidth is equally critical.
Nominal Bandwidth: Broadband vs. Line-Narrowed Operation
Broadband Output:
Free-running ArF lasers produce spectral bandwidth of ~400-500 pm FWHM (full width at half maximum). This bandwidth suits applications where chromatic aberration is tolerable: laser ablation, surface micromachining, and some medical procedures. Refractive optical systems suffer from chromatic dispersion at this bandwidth, limiting precision.
Line-Narrowed Operation:
Photolithography demands extreme bandwidth control. Line-narrowing modules using prism beam expanders and diffraction gratings compress spectral bandwidth below 1 pm FWHM. For example:
- Cymer XLA 300 achieves 0.12 pm (120 fm) FWHM with 0.25 pm E95 bandwidth for 45nm+ immersion lithography
- Gigaphoton GT40A delivers 0.20 pm FWHM with 0.50 pm E95 for sub-65nm lithography
The E95 specification (95% integrated energy bandwidth) matters more in practice than FWHM alone—it captures the full energy distribution that affects imaging performance.
Application-Specific Bandwidth Tolerances
Semiconductor Photolithography:
Lithography demands the tightest bandwidth control because refractive projection lenses are designed for near-monochromatic illumination. Operating with excess bandwidth degrades resolution, effectively widening minimum printable feature size. A 100 fm (0.1 pm) shift in E95 bandwidth can induce a ~1 nm critical dimension (CD) shift at advanced nodes.
That sensitivity drove the transition from mercury lamp sources (365 nm with broad spectra) to line-narrowed ArF lasers—enabling the move from 130 nm nodes down to 7 nm via immersion lithography and multi-patterning.
Medical and Dermatological Applications:
LASIK and PRK procedures tolerate broader bandwidth because the ablation mechanism relies on direct photodissociation of corneal tissue. The 6.42 eV photon energy—not sub-nanometer bandwidth precision—governs material removal. Corneal tissue exhibits an absorption coefficient of 39,900 cm⁻¹ at 193 nm, limiting penetration depth to approximately 1.5 µm and enabling precise photoablative removal without deep thermal damage.
Safe Operating Margin and Wavelength Drift Thresholds
Where medical applications tolerate bandwidth flexibility, lithography scanners leave no room for drift. Key stability requirements and control mechanisms include:

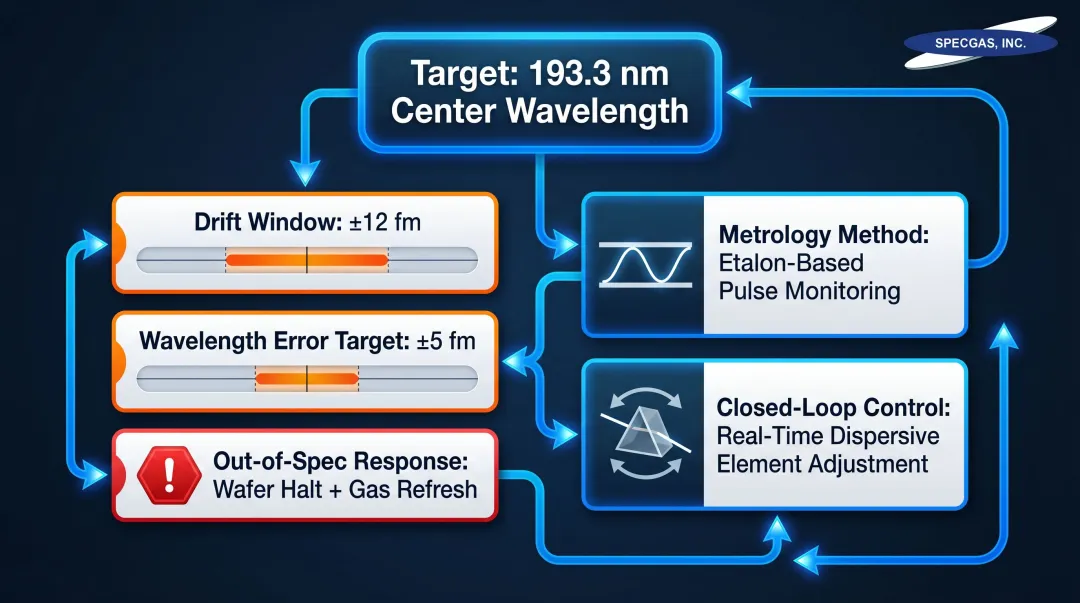

- Drift window: ±12 fm (0.012 pm) or tighter for advanced scanner qualification
- Wavelength error target: ±5 fm maintained via active feedback systems
- Out-of-spec response: wafer exposure halts; the system triggers gas refresh or recalibration
- Metrology: etalon-based wavelength monitors deliver pulse-resolved spectral measurement
- Closed-loop control: systems such as Cymer's DynaPulse adjust dispersive elements in real-time
- Gas refill protocols: replenish depleted fluorine and remove accumulated impurities to restore on-spec operation
Key Technical Properties Defined by the 193 nm Wavelength
The 193 nm output governs four interdependent properties: wavelength stability, photon energy and material interaction, optical system coupling, and achievable resolution.
Property 1: Wavelength Stability and Spectral Drift
Wavelength stability degrades over a gas fill lifetime as fluorine is consumed. Partial pressure reduction shifts the population inversion gain curve, manifesting as gradual center wavelength drift and spectral broadening.
Gas Lifetime Ratings:
| OEM / Technology | Gas Lifetime | Key Technology |
|---|---|---|
| Cymer XLA (Legacy) | 100-500 million pulses | Standard periodic injects |
| Cymer XLR with iGLX | 4 billion pulses | Automated F₂/Ne injection |
| Gigaphoton GT Series | >15 days continuous | Advanced gas control algorithm |
Gas fill purity is the primary driver of wavelength stability between changes. The reactive fluorine component, blended with argon and a buffer gas (typically neon or helium), must maintain tight compositional accuracy. Any deviation in fluorine partial pressure shifts the gain curve and accelerates drift, which is why gas composition verification is critical at each fill cycle.
Property 2: Photon Energy and Material Interaction Depth
At 6.42 eV, each 193 nm photon carries sufficient energy to directly break chemical bonds in polymers, photoresists, and biological tissue. This energy profile produces three defining interaction characteristics:
- Absorption depth: Confined to the outermost few hundred nanometers of most organic materials
- Cold ablation: Molecular bonds break and material is ejected without thermal diffusion into surrounding tissue
- Selectivity: Bond-breaking is photochemical, not thermal, enabling sub-micron material removal
By comparison, CO₂ lasers (10,600 nm) generate heat-affected zones measured in hundreds of microns — a 1,000× difference that makes ArF the only viable option for corneal surgery and photoresist patterning at nanometer scales.
Property 3: Wavelength Coupling to Optical System Design
Standard optical materials fail at 193 nm. Only specialized materials maintain adequate transmission:

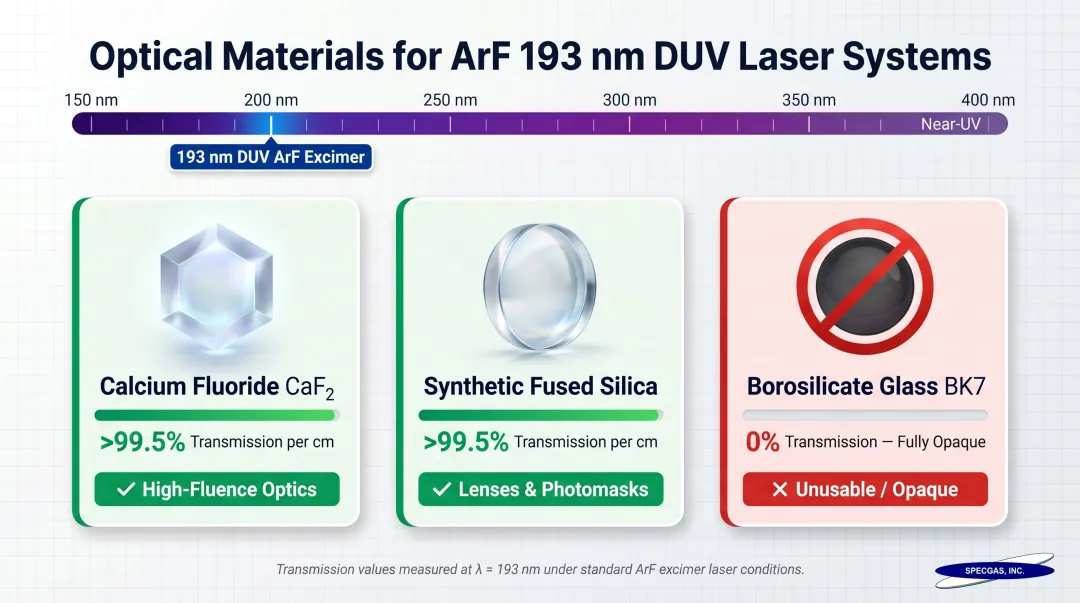

| Material | Transmission at 193 nm | Suitability |
|---|---|---|
| Calcium Fluoride (CaF₂) | >99.8% per cm | Excellent (required for high-fluence optics) |
| Synthetic Fused Silica (HPFS 7980) | >99.5% per cm | Excellent (standard for lenses/photomasks) |
| Borosilicate (BK7) | 0% (opaque) | Unusable (cutoff at ~300 nm) |
Coating degradation at 193 nm accelerates compared to visible wavelengths. Optical transmission specifications must be verified regularly to prevent performance loss.
Property 4: Resolution and Lithographic Node Transitions
The Rayleigh diffraction limit defines minimum resolvable feature size: CD = k1 × λ / NA, where λ is wavelength and NA is numerical aperture. The transition from KrF (248 nm) to ArF (193 nm) enabled proportional improvement in minimum feature size, making ArF the production lithography standard for sub-250 nm nodes. ArF became essential for 90 nm and 65 nm nodes and was extended to 7 nm via immersion lithography.
How ArF Laser Wavelength Is Specified, Measured, and Validated
Wavelength specification functions as both a procurement requirement and an ongoing operational check. A laser that meets its 193 nm spec on delivery can drift out of tolerance during operation — so in-process measurement matters just as much as the initial qualification test.
Specification and Documentation
Key specification parameters on ArF laser datasheets include:
- Center wavelength (nm): Nominal 193.3 nm
- FWHM bandwidth (pm): Full width at half maximum
- E95 bandwidth (pm): 95% integrated energy bandwidth
- Wavelength stability (pm/hour or pm/Mpulses): Drift rate specification
- Gas lifetime (Mpulses to end-of-spec): Operational lifetime before gas refresh
The distinction between "rated" (manufacturer-guaranteed) and "tested" (as-measured) values matters for production process qualification. SEMI standards—particularly SEMI P1 covering durable synthetic fused silica glass requirements for 193 nm—govern laser specifications for lithography tool qualification.
Gas mixture certificates of analysis (COA) and NIST-traceable composition verification are required documentation for the full qualification record. Engineers must qualify the gas fill composition alongside optical and electrical parameters — the fill is a controlled input, not an assumed constant.
Measurement and Verification Methods
Etalon-Based Spectral Measurement

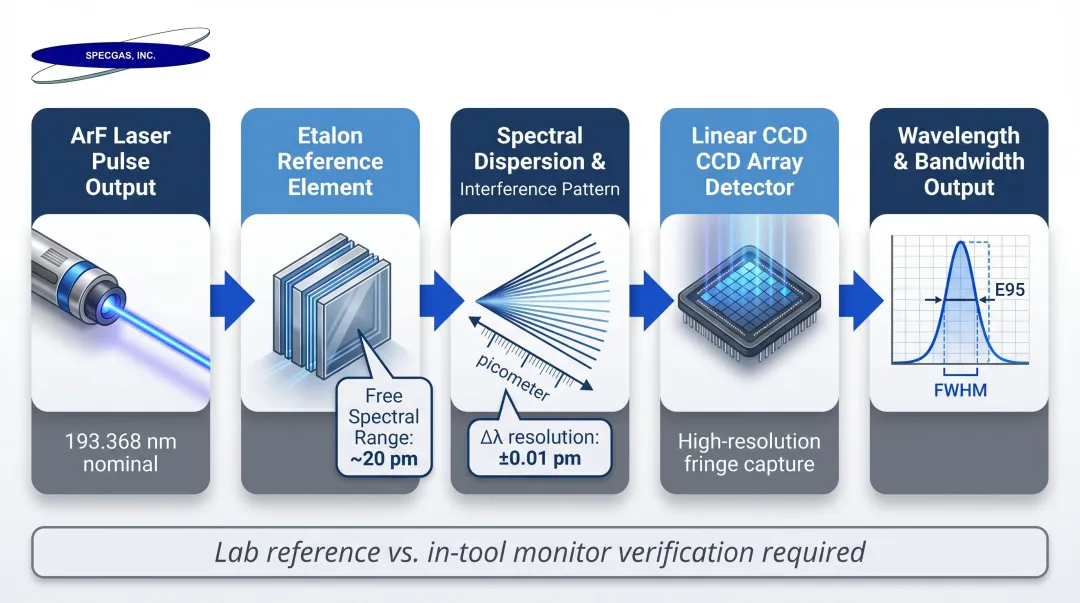

Fabry-Pérot etalons with appropriate free spectral range (FSR) and finesse provide the standard method for sub-picometer wavelength and bandwidth characterization. The etalon separates spectral components for CCD-based analysis, achieving picometer-level measurement resolution. This approach is used in both factory acceptance testing and real-time in-process monitoring within lithography tools.
Where etalon measurements are taken, however, affects reliability. Lab instruments operate in controlled environments with calibrated references. Field monitors run in-tool and are subject to drift — they require periodic verification against lab-grade references to confirm that reported wavelengths are accurate, not just stable.
Implications of Wavelength Deviation and Off-Spec Operation
Wavelength deviation from 193.3 nm—whether through gas depletion, contamination, or optical drift—produces measurable performance consequences that differ by application.
In photolithography, even sub-picometer center wavelength shifts translate directly to CD variation on wafers and yield loss. Because projection lenses are highly chromatic, a 1 pm shift in center wavelength causes approximately 0.225 µm of focus shift—destroying process windows.
Bandwidth broadening compounds this effect, degrading focus and feature edge sharpness through chromatic aberration.
In medical and precision applications, LASIK ablation depth per pulse becomes unpredictable when photon energy delivery shifts due to beam profile changes or wavelength drift. Micromachining sees similar effects, with spatial resolution and feature edge quality both degrading.
Depleted F₂ concentration sets off a self-reinforcing degradation loop:
- Electrode erosion accelerates under low-F₂ conditions
- Chamber contamination rate increases, further destabilizing wavelength output
- Wavelength drift compounds until corrective maintenance is unavoidable
Proactive gas management—routine gas analysis and scheduled refills using verified-composition mixtures—consistently costs less than reactive repairs.
Operating outside specified bandwidth may void OEM warranties on lithography tools and disqualifies process qualification. At that point, the cost isn't just downtime—it's lost process qualification and requalification cycles.
Common Misinterpretations of ArF Laser Wavelength in Practice
The most common misinterpretation treats "193 nm" as a single precise value rather than a specification with tolerances. Even well-maintained lasers operate within a spectral envelope (center wavelength ± drift + FWHM bandwidth). Optical systems must accommodate this envelope, not just the nominal center value. Ignoring this leads to optical design errors and unexpected chromatic performance in the field.
Center Wavelength vs. Bandwidth Confusion
A common oversight: engineers confirm center wavelength is on-spec while bandwidth has quietly broadened due to gas aging. Both parameters require simultaneous monitoring. Key distinctions to track:

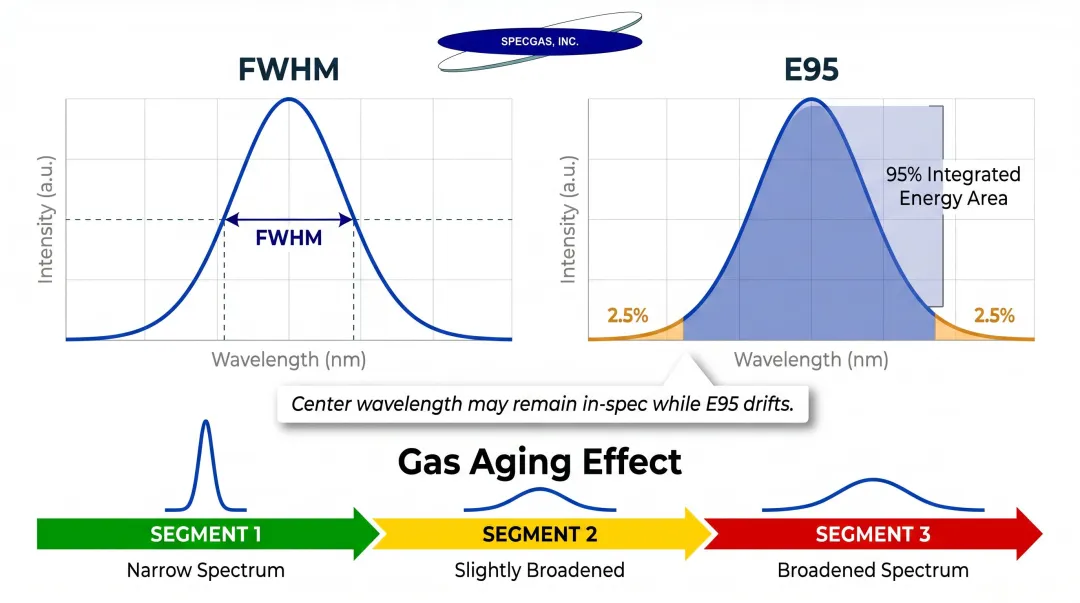

- E95 bandwidth captures the energy distribution that actually affects imaging — often a more reliable operational metric than FWHM for lens system performance
- FWHM reflects peak spectral width but can underrepresent tails that still influence optical performance
- Gas aging shifts bandwidth independently of center wavelength, meaning one can be in-spec while the other is not
Lab Spec vs. Field Conditions
Published bandwidth specs are measured at nominal gas fill, controlled temperature, and rated pulse energy. Field systems rarely match those conditions. Systems running at different repetition rates, partial gas fills, or elevated temperatures show measurably different spectral characteristics. Applying datasheet values directly to field conditions without adjustment is a reliable path to unexpected performance degradation.
Conclusion
The ArF excimer laser's 193 nm wavelength is a governing physical constant—fixed by the quantum energy gap of the ArF* exciplex—but real-world wavelength performance is a managed specification requiring continuous attention to gas fill quality, spectral bandwidth, and optical system compatibility.
For photolithography and precision medical applications, spectral bandwidth is often the binding constraint on resolution capability — not center wavelength alone. Bandwidth degrades through controllable factors: gas depletion, contamination, and pressure drift.
Engineering judgment in gas fill specification and maintenance matters as much as optical design. The best optics cannot compensate for an off-spec lasing medium. Sustained ArF laser performance depends on three controllable inputs:
- Proactive gas management before degradation affects output
- Verified-composition gas fills with traceable concentration data
- Rigorous wavelength monitoring tied to defined replacement intervals
Frequently Asked Questions
What is the wavelength of the ArF excimer laser?
The ArF excimer laser emits at 193 nm (193.3 nm nominal) in the deep ultraviolet range, with a photon energy of 6.42 eV. This is a fixed molecular transition of the ArF* exciplex rather than a tunable parameter.
What is the principle of excimer laser?
Excimer lasers electrically excite a noble gas-halide mixture — argon and fluorine, for instance — to form a short-lived excited complex (ArF*) that emits UV photons upon decay. Population inversion occurs naturally because the ground state dissociates almost immediately, keeping the lower laser level virtually empty.
What is the wavelength of KrF excimer laser?
The KrF excimer laser emits at 248 nm, also in the deep UV range. ArF's shorter 193 nm wavelength enables finer lithographic resolution, which drove the industry transition from KrF to ArF for sub-250 nm semiconductor nodes.
What wavelength is excimer laser for vitiligo?
Vitiligo treatment uses the XeCl excimer laser at 308 nm, not 193 nm ArF. The 308 nm wavelength penetrates to the basal skin layer to stimulate melanocytes, whereas 193 nm is fully absorbed by the outermost skin layer and never reaches the treatment site.
What is the excimer laser used for?
Excimer lasers serve three primary domains: semiconductor photolithography (193 nm ArF for chip manufacturing), refractive eye surgery (LASIK/PRK using 193 nm cold ablation), and precision micromachining and surface processing of polymers and optical materials.
Which excimer laser is best?
No single excimer laser is universally best — it comes down to application. ArF (193 nm) is the standard for semiconductor lithography and corneal surgery. KrF (248 nm) covers industrial and some lithography uses. XeCl (308 nm) is the dermatology choice, particularly for conditions like vitiligo and psoriasis.
